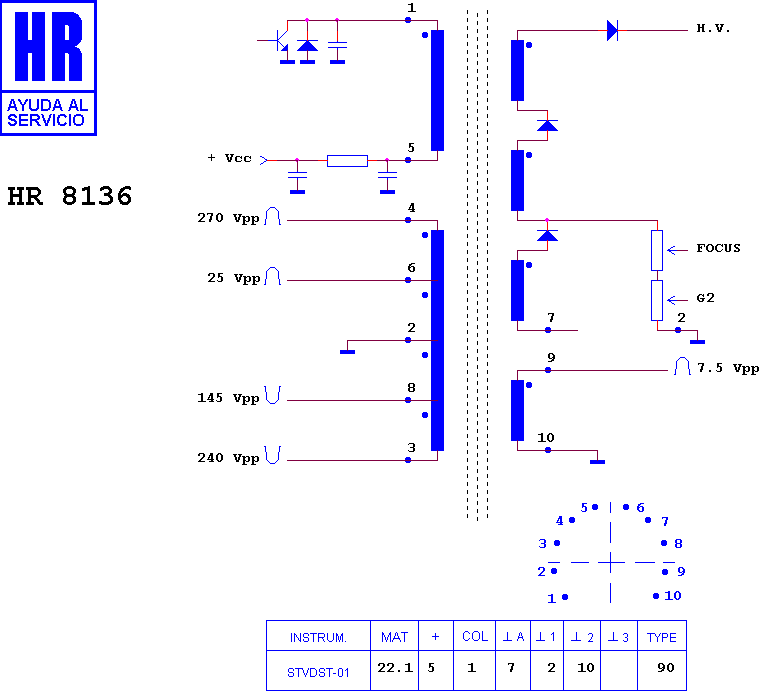

HR 8136

type ST · family 1NP1 · 22.5 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (1)

2434594

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7184 · HR 7510 · HR 7146 · HR 7145 · HR 7167 · HR 7173 · HR 7170 · HR 8799 · HR 7039 · HR 8488 · HR 8480 · HR 7964

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
