HR 7510

type ST · family 1NP1 · 22.8 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

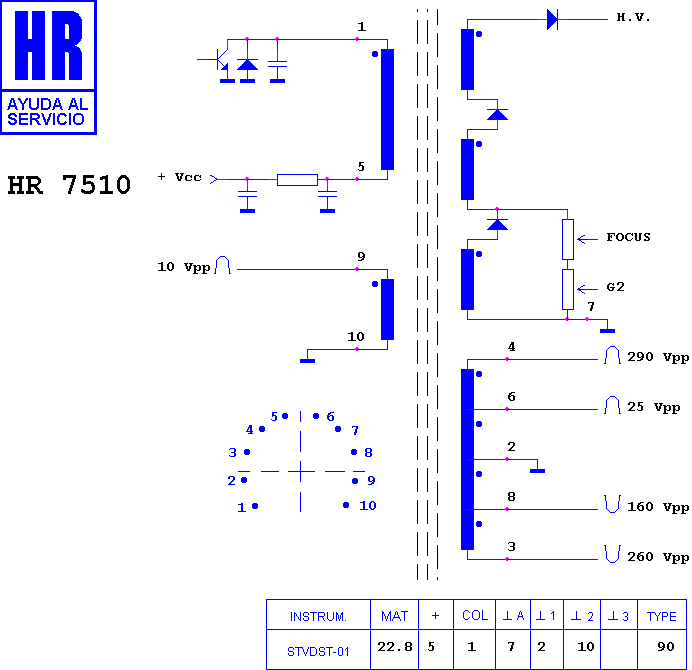

Schematic diagram for HR 7510
schematic

Manufacturer equivalents (3)

2434595 · 2434595H · 2434598

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7184 · HR 7145 · HR 8136 · HR 7146 · HR 7170 · HR 7039 · HR 7428 · HR 7374 · HR 8783 · HR 7418 · HR 7198 · HR 7176

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
