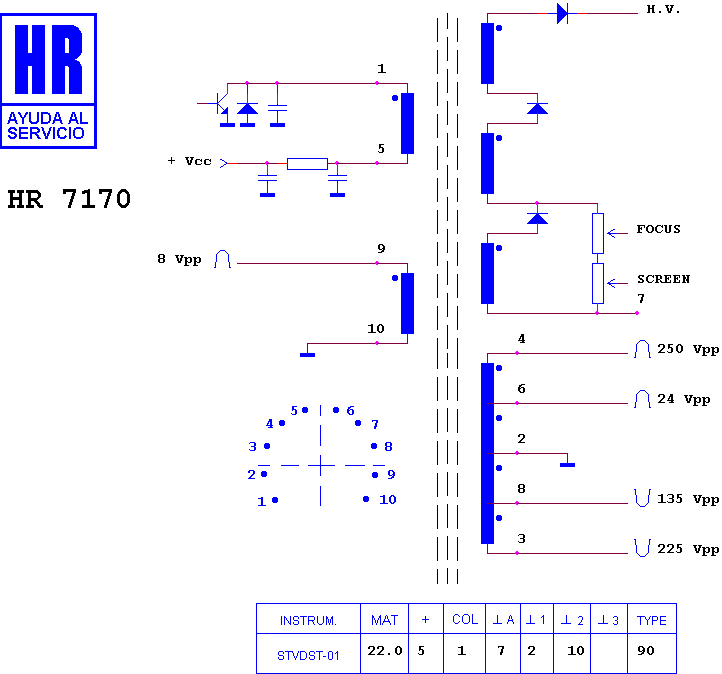

HR 7170

type ST · family 1NP1 · 22 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

Manufacturer equivalents (9)

003281012 · 020511 · 2434854 · 2434854 A · BSC 22-0106 · BSC 22-0106 H · BSC 22-06 F · RO 479 · TR 479

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8136 · HR 8799 · HR 7510 · HR 7145 · HR 8480 · HR 7146 · HR 7184 · HR 8102 · HR 7198 · HR 7234 · HR 7333 · HR 7493

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (8)

DURABRAND CTV 14 NF · HITACHI C 376 · HITACHI C 377 · HITACHI-FUJIAN C 376 · HITACHI-FUJIAN C 377 · INTERVISION CTV 1408 · SILVER - SILVER CROWN SIL 1401 · SUNNY 1402 D

Search this part in the full database
