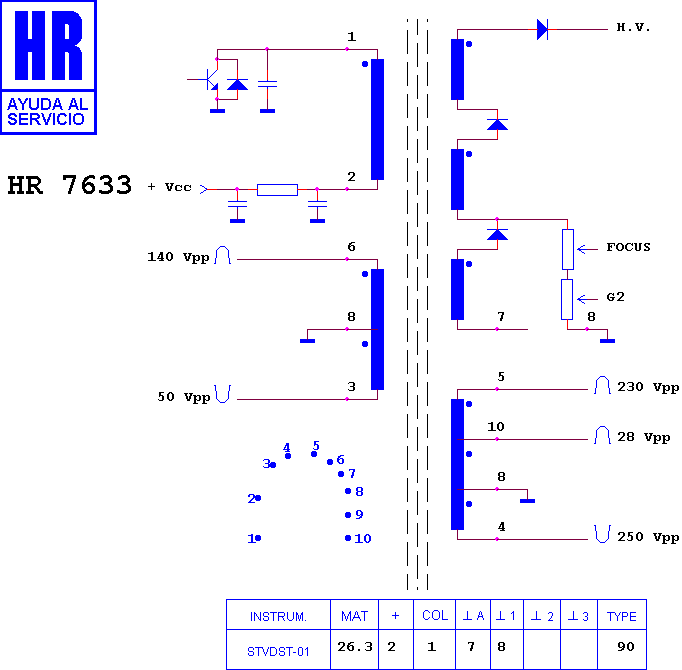

HR 7633

type ST · family 1YP · 26.3 kV maximum anode voltage · 90° deflection · 4 windings · 401 g

Manufacturer equivalents (3)

2435062 · J 2435062 · TR 7390

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7970 · HR 7837 · HR 7028 · HR 8398 · HR 7282 · HR 6142 · HR 7168 · HR 7807 · HR 7846 · HR 80076 · HR 8600 · HR 6590

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

HITACHI C 21 P 226 · HITACHI C 21 P 228 · HITACHI C 21 P 250 TX · HITACHI C 21 P 818 · HITACHI C 21 P 819 · HITACHI CL 2159 TA
