HR 8600

type ST · family 1XP1 · 17.5 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

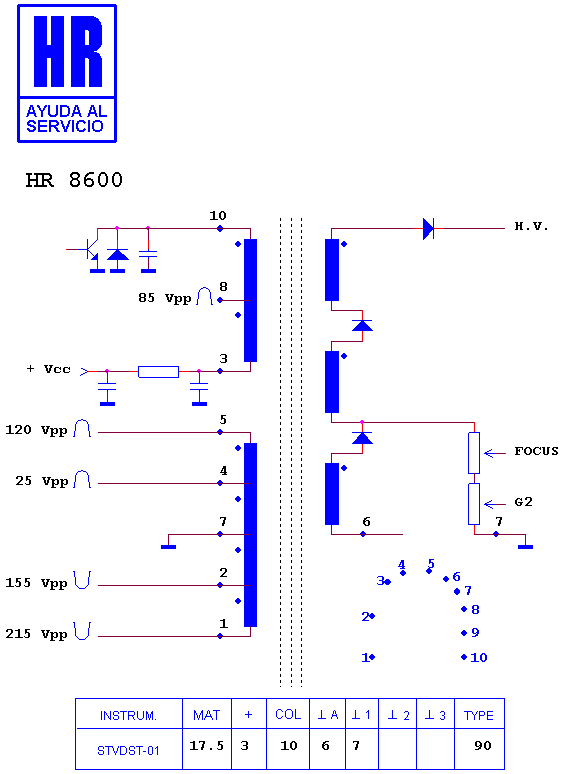

Schematic diagram for HR 8600
schematic

Manufacturer equivalents (8)

003071056 · 003141063 · 003441010 · 59 E 0029 AA-J 20 · BSC 22-2903 · JF 0208-0236 A · RO 206 · TR 278

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7444 · HR 7984 · HR 7734 · HR 7441 · HR 8205 · HR 7918 · HR 8358 · HR 8472 · HR 7058 · HR 6090 · HR 7656 · HR 7197

Fitted to (1)

IMPER CE 1403
