HR 8472

type ST · family 1XP1 · 24.5 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

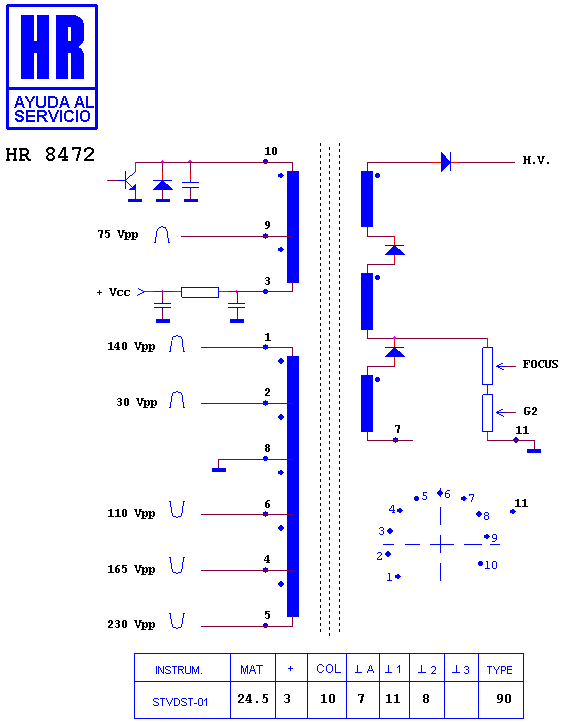

Schematic diagram for HR 8472
schematic

Manufacturer equivalents (2)

154 122 L · 154 183 L

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8358 · HR 7444 · HR 7918 · HR 8205 · HR 8600 · HR 7984 · HR 8660 · HR 8452 · HR 7978 · HR 7797 · HR 8898 · HR 8915

Fitted to (2)

GOLDSTAR - LG CHASIS NC 07 X 3 · GOLDSTAR - LG CMR 9460 N
