HR 8088

type ST · family 1YP · 26.6 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

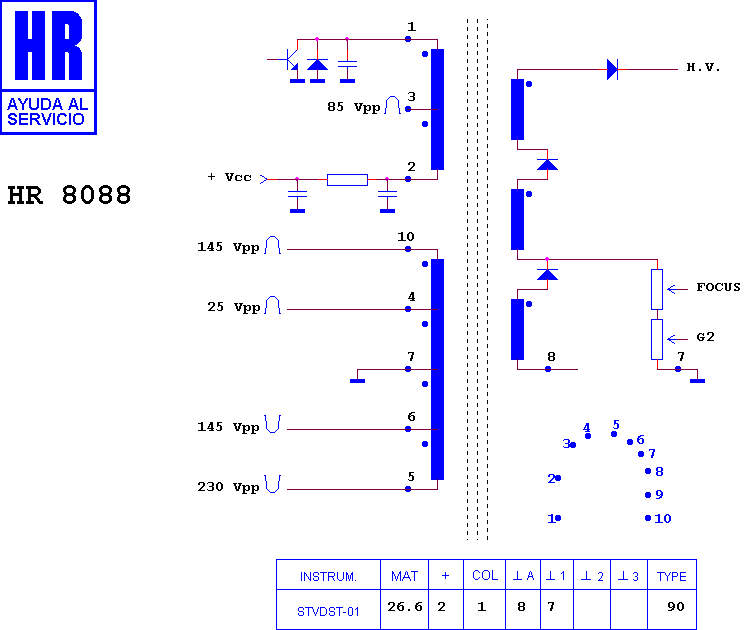

Schematic diagram for HR 8088
schematic

Manufacturer equivalents (6)

50270127 · 5908-05016A-AA · CF 122 A · FAT30239 · KN30239 · LCE CF 122 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7983 · HR 7711 · HR 8915 · HR 7772 · HR 8820 · HR 7629 · HR 8547 · HR 7817 · HR 7488 · HR 7457 · HR 8096 · HR 8607

Fitted to (6)

NOKIA - ITT CHASIS 5434 51 70 · SEG CT 3171 · SEG CTV 2971 · SEG CTV 3171 · TELETECH CTV 2971 · TELETECH CTV 3171
