HR 8547

type ST · family 1YP · 31.8 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

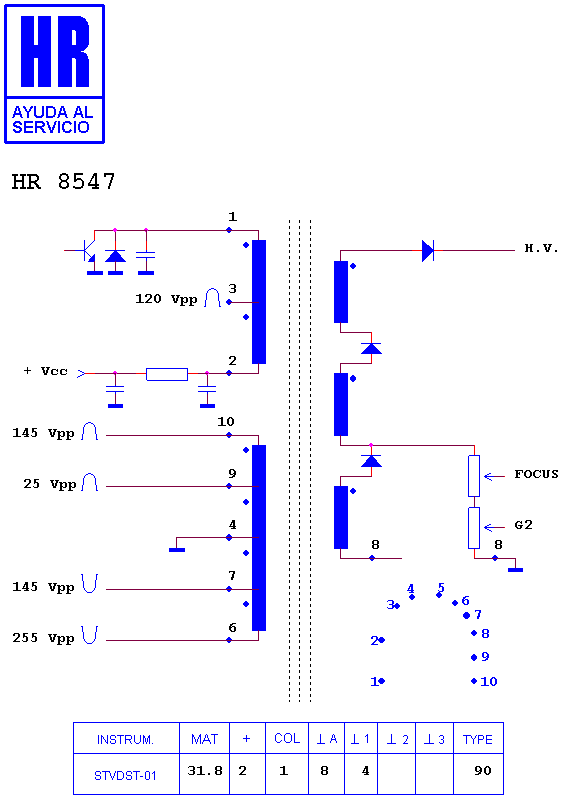

Schematic diagram for HR 8547
schematic

Manufacturer equivalents (2)

23236177 · TFB 4076 AD

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7983 · HR 8915 · HR 7769 · HR 8140 · HR 7669 · HR 8607 · HR 8696 · HR 7730 · HR 8807 · HR 8088 · HR 8605 · HR 7457

Fitted to (2)

TOSHIBA CF 2638 · TOSHIBA CF 2648
