HR 8096

type ST · family 1XP1 · 19.2 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

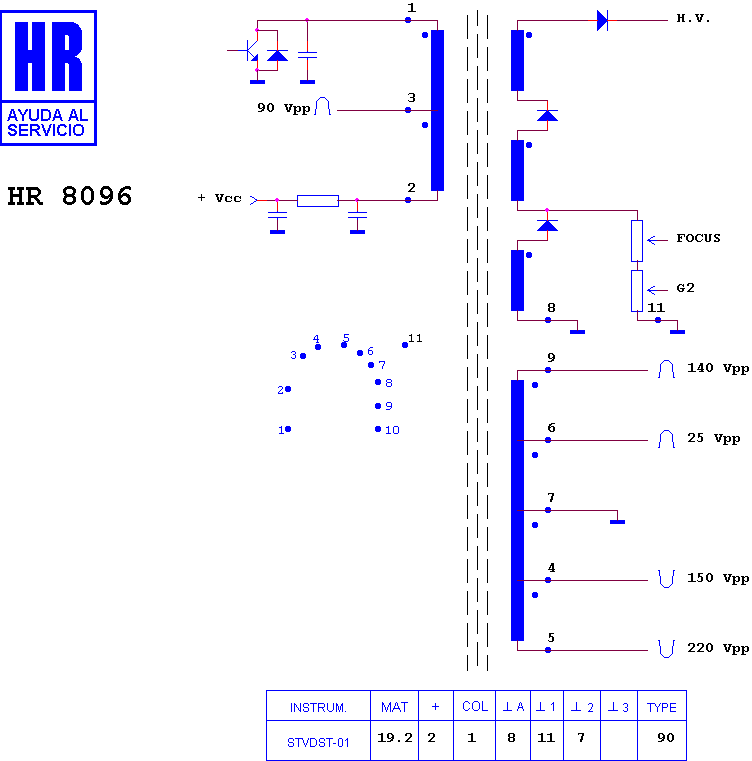

Schematic diagram for HR 8096
schematic

Manufacturer equivalents (5)

003072011 · 154 189 H · AFS 242 · FAT30467 · FAT30729

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8605 · HR 7457 · HR 8088 · HR 7978 · HR 8807 · HR 8607 · HR 7983 · HR 7854 · HR 7439 · HR 7726 · HR 8087 · HR 8915

Fitted to (19)

AKAI CTG 140 D · AMS AT 145 TXT · AMS COLOUR TELEVISION · AMS CTV 140 VT · CONTINENTAL GT 9313 · CRYPTON CTV 155 · DAEWOO DMQ 14 U 1 · DANSAI 8813 · EMERSON 3352 Z · INTERVISION CTV 3790 · JUBILEE CP 3796 · KTV CTV 3700 VT · LIFETECH LT 3790 VT · MEDION MD 3790 VT · ROYAL TV 3714 TX · RYPTON CT 1455 · TEAC CTM 340 · TEAC CTM 340 MK II · YOKAN K 170
