HR 7726

type ST · family 1YP · 25.6 kV maximum anode voltage · 90° deflection · 3 windings · 368 g

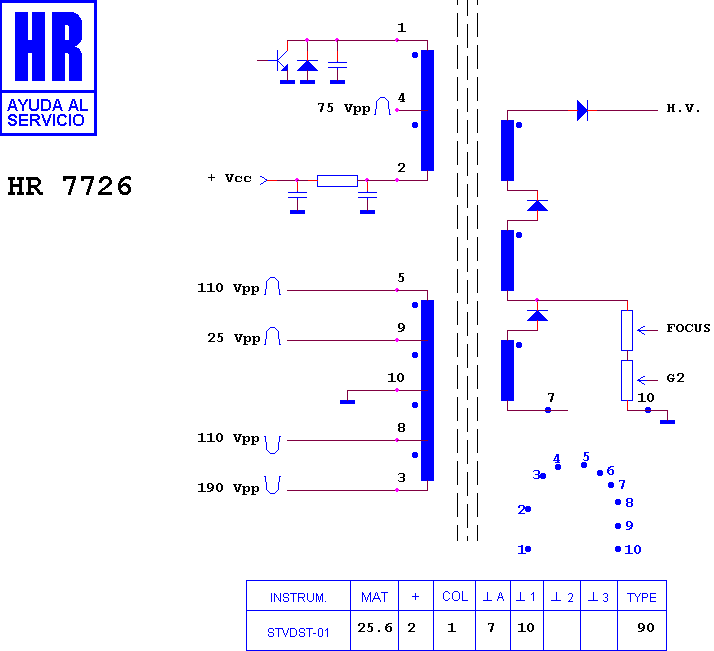

Schematic diagram for HR 7726
schematic

Manufacturer equivalents (4)

1AV4L40A00600 · 645 000 0881 · 645 000 1414 32 · L 40 A 00600

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7983 · HR 7439 · HR 8088 · HR 7629 · HR 8820 · HR 8607 · HR 7978 · HR 7457 · HR 7648 · HR 8605 · HR 8096 · HR 7960

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

FISHER G 3 M 45250 · FISHER G 4 L 46200 · FISHER PC 3525 · FISHER PC 4525/620
