HR 7960

type ST · family 1YP · 18.6 kV maximum anode voltage · 90° deflection · 3 windings · 390 g

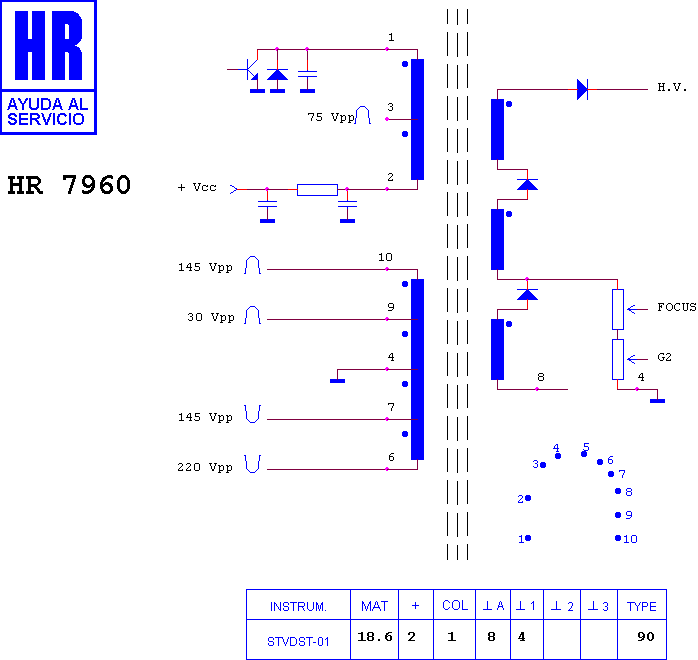

Schematic diagram for HR 7960
schematic

Manufacturer equivalents (5)

001-299901-05 · 154 279 C · 154279B · BSC26N0201 · BSC26N0201A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7645 · HR 7978 · HR 8605 · HR 7457 · HR 8088 · HR 7854 · HR 8807 · HR 8096 · HR 7726 · HR 8087 · HR 8607 · HR 7983

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (22)

AMS AT 285 TXT · AMS COLOUR TELEVISION · ARE GT 8828 · BASIC LINE 8828 · BASIC LINE GT 8828 · DANSAI 28" STEREO · EXELLENT CT 170 HTX · GREAT WALL GT 8828 · LAVIS K 2550 · LUX-MAY LC 2800 · MEDION MD 6340 VTS · NOVA NTV 2865 MK · PACKARD BELL 2960 · PACKARD BELL MONITOR · PILOT PIL 5256 · PROTECH CTV 2770 R · ROWA GT 8828 · ROWA GT 9325 · ROWA GT 9329 · TEAC CTM 711 S · YOKAN K 2850 · YOKO K 2850
