HR 7881

type ST · family 1XP1 · 19 kV maximum anode voltage · 90° deflection · 3 windings · 262 g

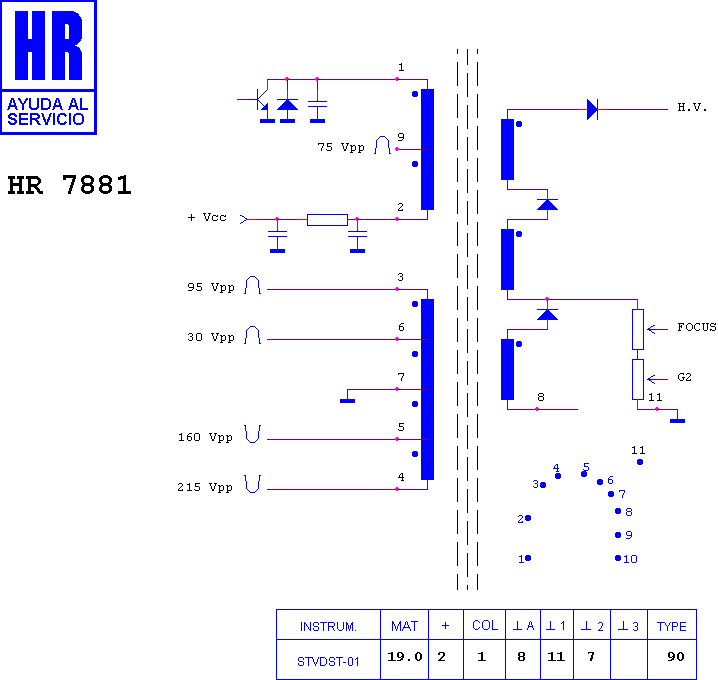

Schematic diagram for HR 7881
schematic

Manufacturer equivalents (3)

4992-003 · FCA 047 · MAT33224

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8820 · HR 7868 · HR 7648 · HR 80294 · HR 7439 · HR 8928 · HR 7711 · HR 7645 · HR 7822 · HR 8194 · HR 7461 · HR 7809

Fitted to (4)

ANI M 5133 DK · ETRON JC 201 · ROWA 9320 · STARK CTV 2012
