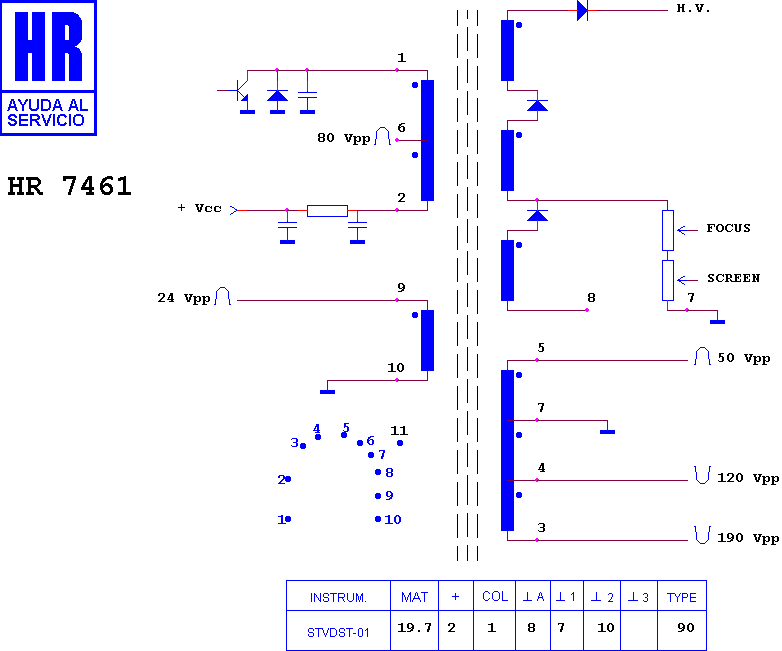

HR 7461

type ST · family 1XP1 · 19.7 kV maximum anode voltage · 90° deflection · 4 windings · 252 g

Manufacturer equivalents (5)

334 B 07803 · 334 B 078030 · BSC 0705 · BSC 0706 · FAT 30715

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8263 · HR 8747 · HR 8922 · HR 8820 · HR 7830 · HR 7660 · HR 8087 · HR 7648 · HR 7659 · HR 8928 · HR 7881 · HR 8085

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (17)

AMSTRAD COLOUR TELEVISION · AMSTRAD CTV 1401 · AMSTRAD CTV 1409 · AWA CT 1440 · AWA CT 1447 · MITSUBISHI CF 1447 AM · MITSUBISHI CHASIS EURO 3 · MITSUBISHI CT 14 M 1 · MITSUBISHI CT 1414 · MITSUBISHI CT 1440 · MITSUBISHI CT 1440 B · MITSUBISHI CT 1440 V · MITSUBISHI CT 1447 · MITSUBISHI CT 1447 BM · MITSUBISHI CT 1447 HM · MITSUBISHI CT 205 HM · MITSUBISHI CT 2131
