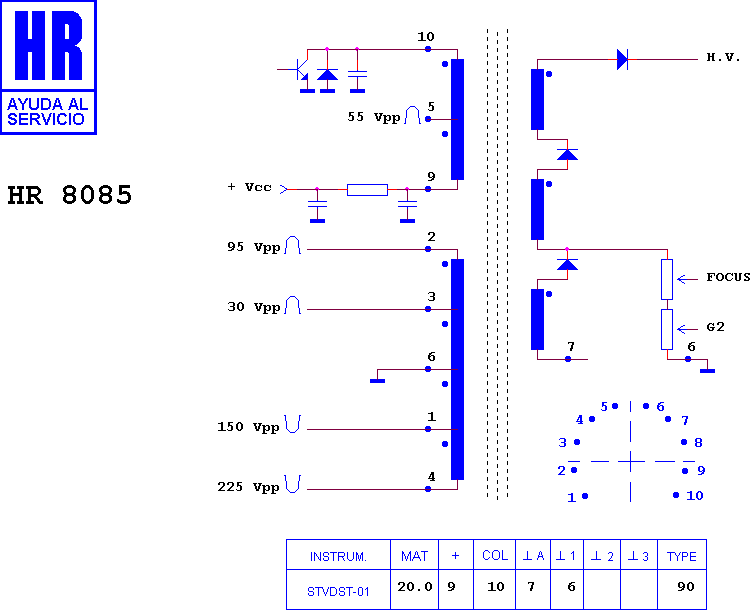

HR 8085

type ST · family 1NP1 · 20 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

Manufacturer equivalents (1)

FCC 2015 GL

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7471 · HR 7801 · HR 8747 · HR 8263 · HR 7518 · HR 7585 · HR 7597 · HR 7598 · HR 7511 · HR 7073 · HR 8922 · HR 7197

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

LLOYD'S L 526 A
