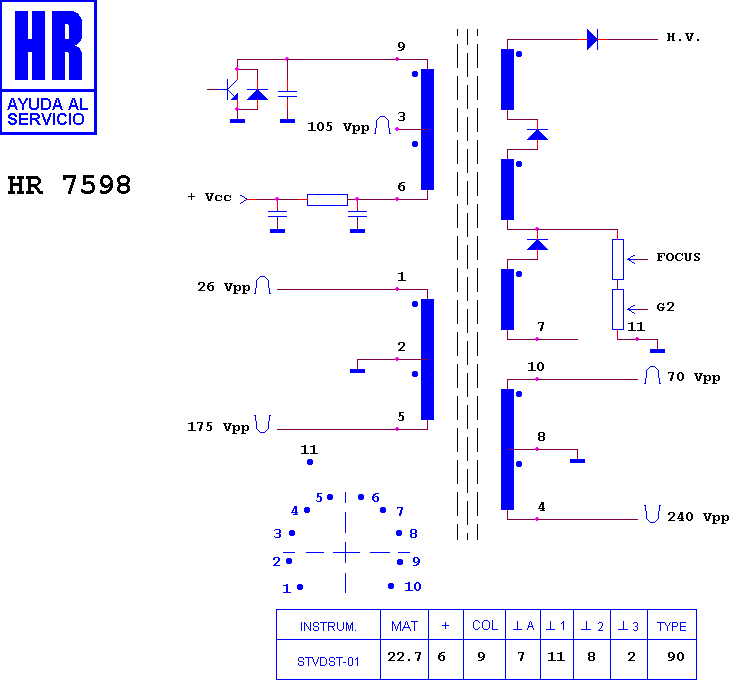

HR 7598

type ST · family 1NP · 22.7 kV maximum anode voltage · 90° deflection · 4 windings · 238 g

Manufacturer equivalents (1)

HR 7598-01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7563 · HR 7597 · HR 7567 · HR 7585 · HR 8047 · HR 7588 · HR 7273 · HR 8263 · HR 8820 · HR 8143 · HR 7854 · HR 7918

Search this part in the full database
