HR 7273

type ST · family 1AP2 · 20.7 kV maximum anode voltage · 90° deflection · 5 windings · 316 g

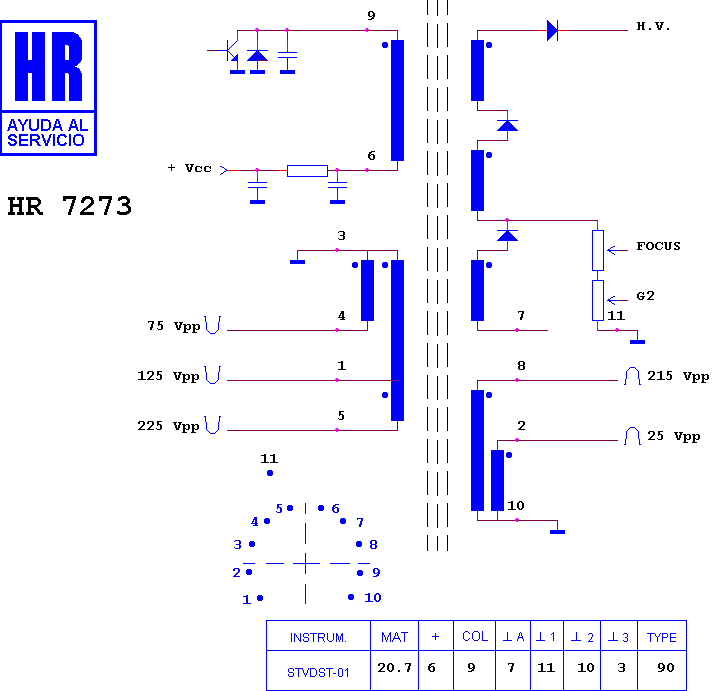

Schematic diagram for HR 7273
schematic

Manufacturer equivalents (3)

201 827 60 · 534 TX 0319 · FCV 1010 E 02

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7264 · HR 8092 · HR 8067 · HR 7598 · HR 7272 · HR 7275 · HR 7811 · HR 6223 · HR 7655 · HR 6357 · HR 7868 · HR 7817
