HR 7275

type ST · family 1AP2 · 19.9 kV maximum anode voltage · 90° deflection · 3 windings · 298 g

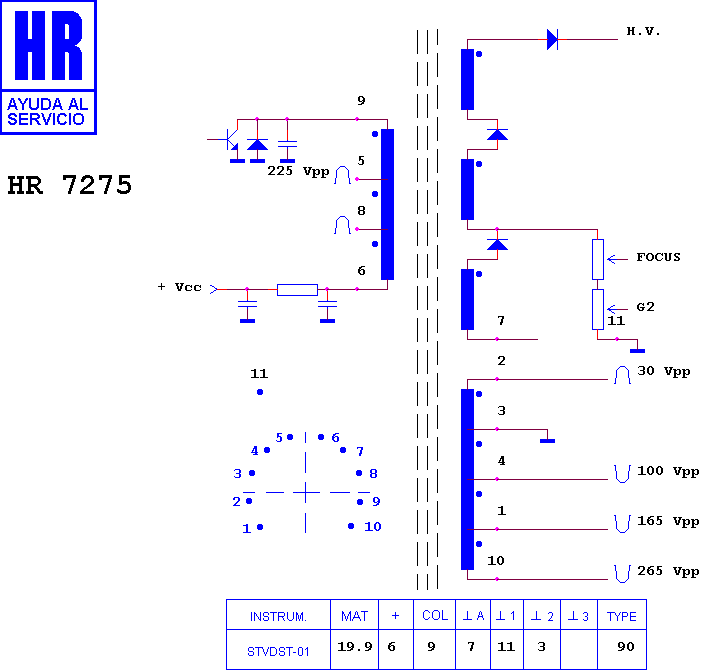

Schematic diagram for HR 7275
schematic

Manufacturer equivalents (8)

243.563 · 2435673 · 246.059 · 4900 075 419 · 534 TX 0278 · 80231500 · 84230298 · 88231500

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7273 · HR 8067 · HR 7264 · HR 8092 · HR 7172 · HR 7272 · HR 7817 · HR 7444 · HR 7811 · HR 7457 · HR 7816 · HR 8605

Fitted to (13)

FERGUSON-THORN-EMI A 10 R · FERGUSON-THORN-EMI A 14 R · FERGUSON-THORN-EMI CHASIS TX 80 · FERGUSON-THORN-EMI D 14 R · FERGUSON-THORN-EMI FD 1410 · NORDMENDE 0.505 A · NORDMENDE 0.505 J · NORDMENDE 990.505 A · NORDMENDE 990.505 J · NORDMENDE CHASIS F 22 IMC 3 · NORDMENDE CHASIS TX 80 · NORDMENDE GALAXY 250 · SABA M 2503
