HR 8067

type ST · family 1AP2 · 21.3 kV maximum anode voltage · 90° deflection · 4 windings · 328 g

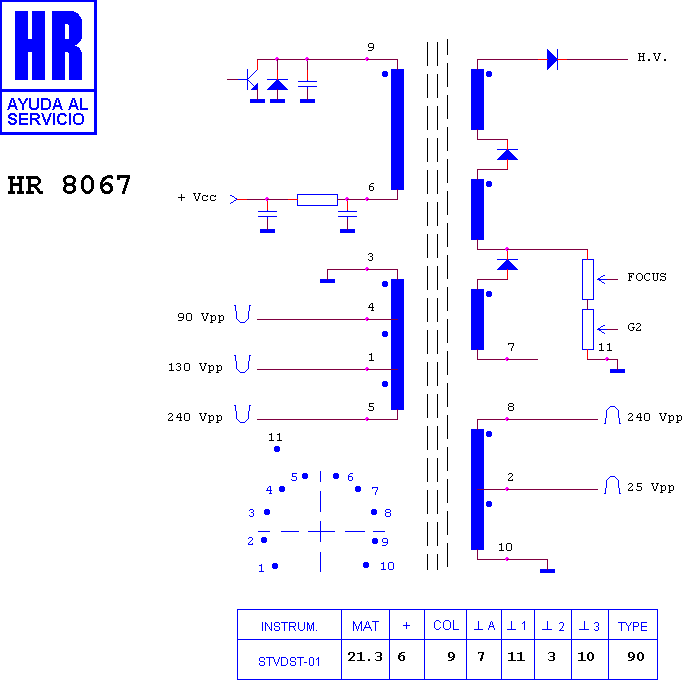

Schematic diagram for HR 8067
schematic

Manufacturer equivalents (2)

202721.70 · FCV 1610 E 02

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8092 · HR 7264 · HR 7273 · HR 7272 · HR 7275 · HR 6223 · HR 7816 · HR 7772 · HR 7811 · HR 7817 · HR 7730 · HR 6357

Fitted to (7)

BRE CHASIS TX 90 · FERGUSON-THORN-EMI CHASIS TX 90 · NORDMENDE CHASIS TX 90 · SABA CHASIS TX 90 · SABA M 4206 · TELEFUNKEN CHASIS TX 90 · THOMSON CHASIS TX 90
