HR 6357

type ST · family 1IS1 · 25.5 kV maximum anode voltage · 90° deflection · 4 windings · 412 g

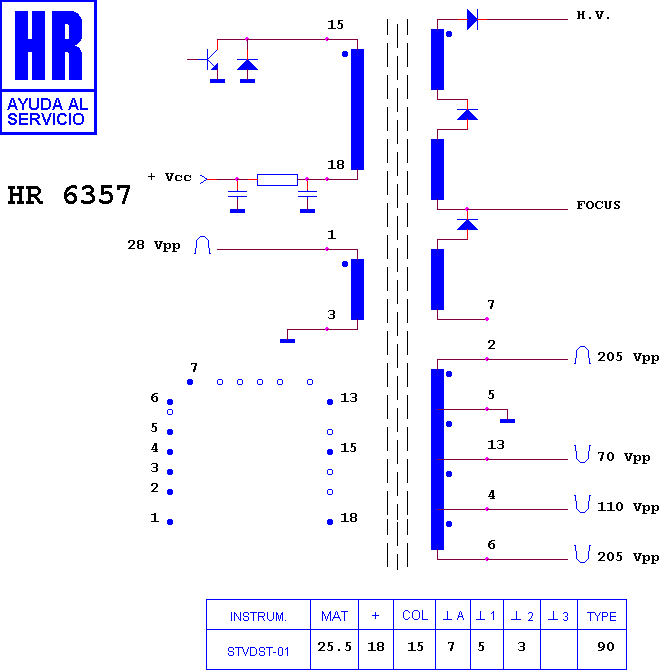

Schematic diagram for HR 6357
schematic

Manufacturer equivalents (16)

003390006 · 140 17023 · 3106 108 32171 · 3122 138 37140 · 3122 138 37141 · 37140 · 37141 · 37142 · 37143 · 37144 · 37145 · 4806 140 17023 · FAT30246 · HR 6357 · KN30246 · TVC/34

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7868 · HR 7797 · HR 7829 · HR 8928 · HR 7772 · HR 7439 · HR 8755 · HR 8092 · HR 7264 · HR 7273 · HR 7811 · HR 8067

Fitted to (40)

PHILIPS 14 CN 4015 · PHILIPS 14 CN 4016 · PHILIPS 14 CN 4017 · PHILIPS 14 CN 4018 · PHILIPS 14 CN 4414 · PHILIPS 14 CN 4415 · PHILIPS 14 CN 4416 · PHILIPS 14 CN 4417 · PHILIPS 14 CN 4418 · PHILIPS 14 CN 4419 · PHILIPS 14 CT 6005 · PHILIPS 14 CT 6305 · PHILIPS 14 CT 6401 · PHILIPS 14 CT 6405 · PHILIPS 16 CN 4035 · PHILIPS 16 CN 4036 · PHILIPS 16 CN 4037 · PHILIPS 16 CN 4038 · PHILIPS 16 CN 4435 · PHILIPS 16 CT 6010 · PHILIPS 16 CT 6410 · PHILIPS 20 CN 4048 · PHILIPS 20 CN 4065 · PHILIPS 20 CN 4066 · PHILIPS 20 CN 4067 · PHILIPS 20 CN 4068 · PHILIPS 20 CN 4465 · PHILIPS 20 CN 4466 · PHILIPS 20 CT 6000 · PHILIPS 20 CT 6055 · PHILIPS 20 CT 6100 · PHILIPS 20 CT 6255 · PHILIPS 20 CT 6400 · PHILIPS 20 CT 6455 · PHILIPS 20 CT 6456 · PHILIPS 20 CT 6558 · PHILIPS CHASIS NCF · PHILIPS CHASIS NCF MONITOR · PHILIPS CHASIS NCF-L · PHILIPS CHASIS NCF-NRC
