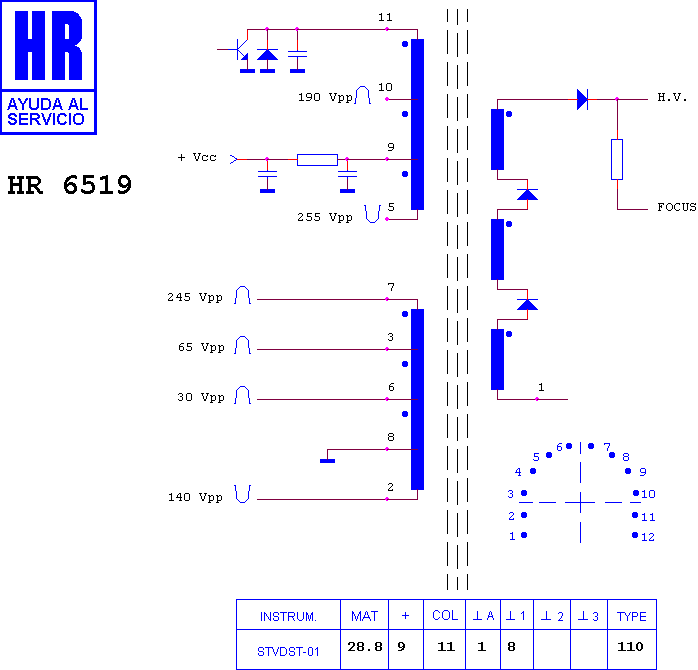

HR 6519

type ST · family 1BS2 · 28.8 kV maximum anode voltage · 110° deflection · 3 windings · 356 g

Manufacturer equivalents (14)

003160108 · 29201-029.64 · 29201.029.60 · 29221-029.64 · 29221.029.60 · 29221.029.6000 · 546620210 K · 8 669 485 092 · FAT30726 · HR 6519 · M 29201.029.60 · M 29221.029.60 · RO 725 · TR 725

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6520 · HR 6508 · HR 80108 · HR 6578 · HR 6357 · HR 7360 · HR 8228 · HR 8596 · HR 8007 · HR 6647 · HR 8157 · HR 8879

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control

Fitted to (16)

GRUNDIG 80-796/9 TOP · GRUNDIG 84-796/9 · GRUNDIG 84-796/9 TOPLOG · GRUNDIG 84-896 NIC TOP · GRUNDIG 84-896 NIC/TOP · GRUNDIG CHASIS CUC 2080 · GRUNDIG CHASIS CUC 2080 N · GRUNDIG CHASIS CUC 5380 · GRUNDIG CHASIS CUC 6380 · GRUNDIG CHASIS CUC 6480 · GRUNDIG ST 80-796/9 TOP · GRUNDIG ST 84-796 · GRUNDIG ST 84-796/9 · GRUNDIG ST 84-796/9 TOP LOG · GRUNDIG ST 84-896 NIC TOP · GRUNDIG SUPER COLOR ST
