HR 8879

32.7 kV maximum anode voltage · 110° deflection · 4 windings · 390 g

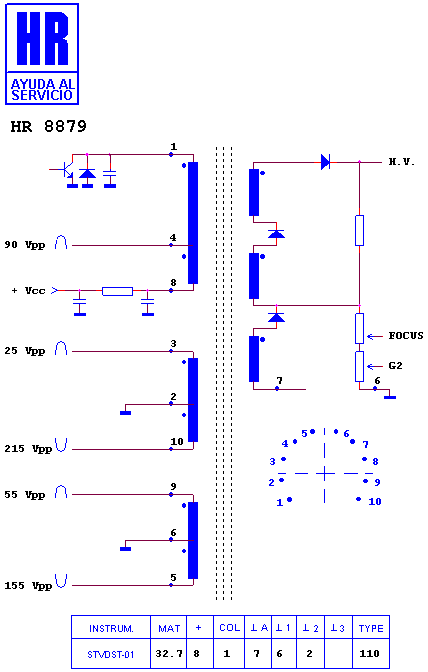

Schematic diagram for HR 8879
schematic (archived)

Manufacturer equivalents (6)

1192.1237 · 1192.1237A · 1192.1237B · 1362.3026 · DS33 · HR 8879

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8173 · HR 6555 · HR 8234 · HR 8892 · HR 80243 · HR 80085 · HR 8193 · HR 80130 · HR 80081 · HR 8814 · HR 8596 · HR 7856

Fitted to (4)

MIVAR 33 M 1 · MIVAR 33 M 1 STEREO · MIVAR 33 M 1 STEREO PIP · MIVAR M 1
