HR 80085

37.2 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

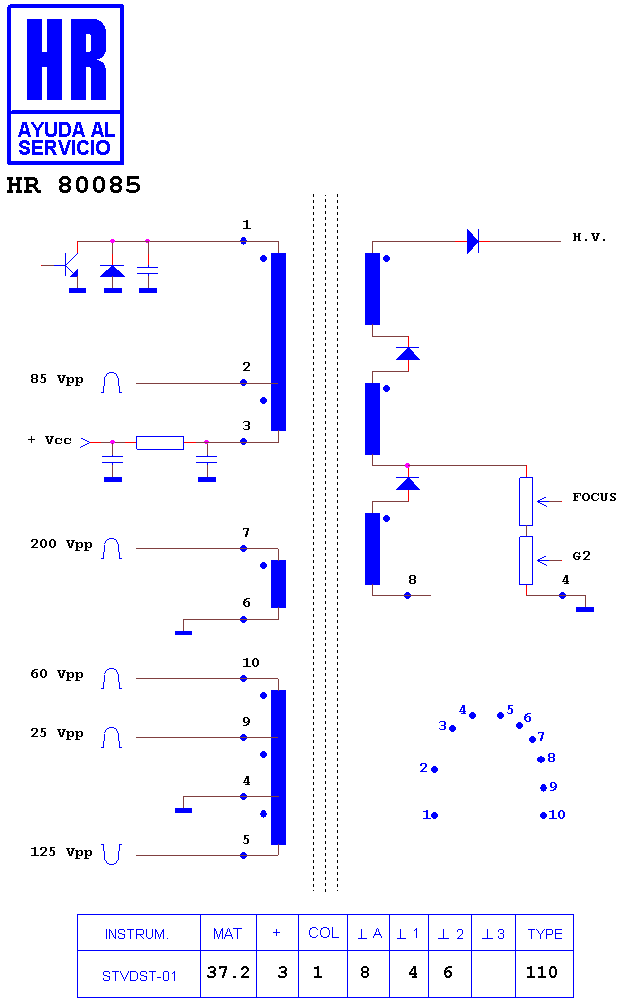

Schematic diagram for HR 80085
schematic (archived)

Manufacturer equivalents (4)

154279E · 154279F · 154279S · 933267925006

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8251 · HR 8838 · HR 8886 · HR 80091 · HR 8409 · HR 80022 · HR 8193 · HR 6555 · HR 7329 · HR 8892 · HR 8862 · HR 8888

Fitted to (3)

PHILCO MT 2799 · PHILCO MT 2799 G · PHILCO PCS 2950
