HR 6680

type ST · family 1BS1 · 46.5 kV maximum anode voltage · 110° deflection · 5 windings · 367 g

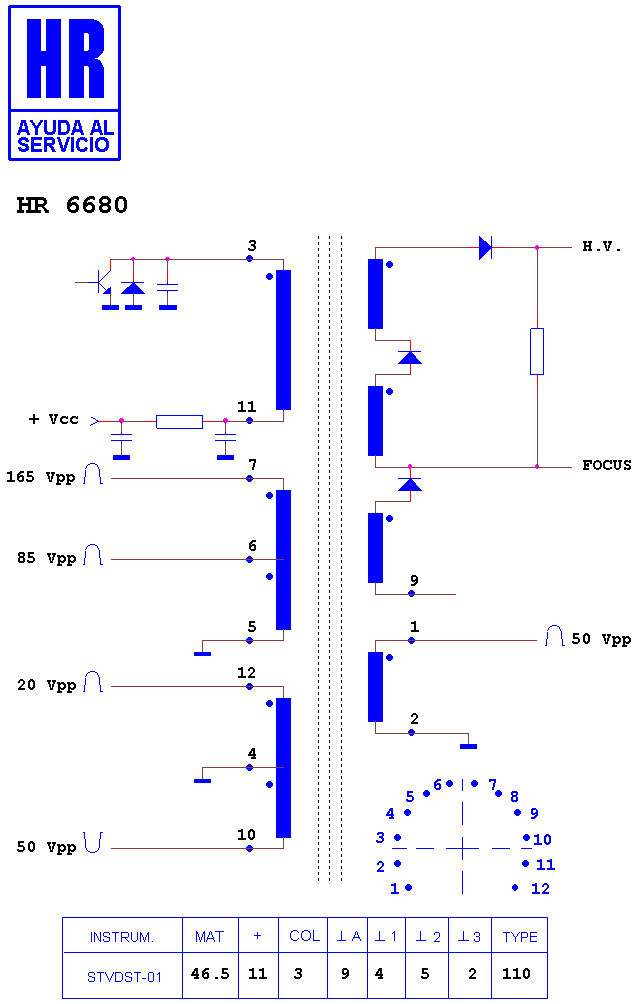

Schematic diagram for HR 6680
schematic

Manufacturer equivalents (3)

101656.60 · 40308-42 · 8014136

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7329 · HR 6305 · HR 6330 · HR 6340 · HR 7251 · HR 6343 · HR 6307 · HR 6332 · HR 6342 · HR 6325 · HR 7289 · HR 6306
