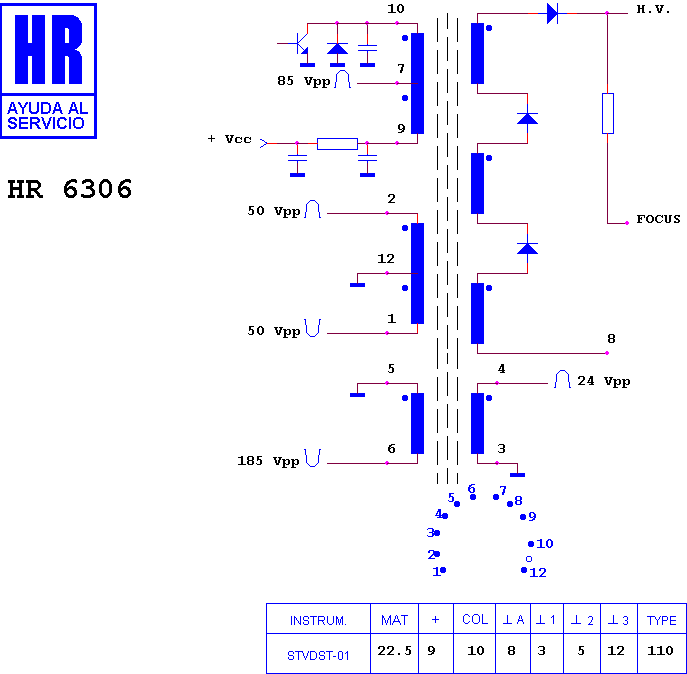

HR 6306

type ST · family 1QS · 22.5 kV maximum anode voltage · 110° deflection · 4 windings · 331 g

Manufacturer equivalents (7)

003220108 · 534 TX 0315 · 8 667 210 806 · FAT 3801 · ME/6095-00 · RO 204 · TR 243

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6341 · HR 6305 · HR 6330 · HR 6340 · HR 6307 · HR 6332 · HR 6342 · HR 6333 · HR 6347 · HR 6331 · HR 6325 · HR 7394

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Fitted to (3)

BLAUPUNKT 7 665 874 · BLAUPUNKT CHASIS FM 130 · BLAUPUNKT COLUMBIA SQ 25
