HR 6333

type ST · family 1QP · 34.8 kV maximum anode voltage · 110° deflection · 4 windings · 368 g

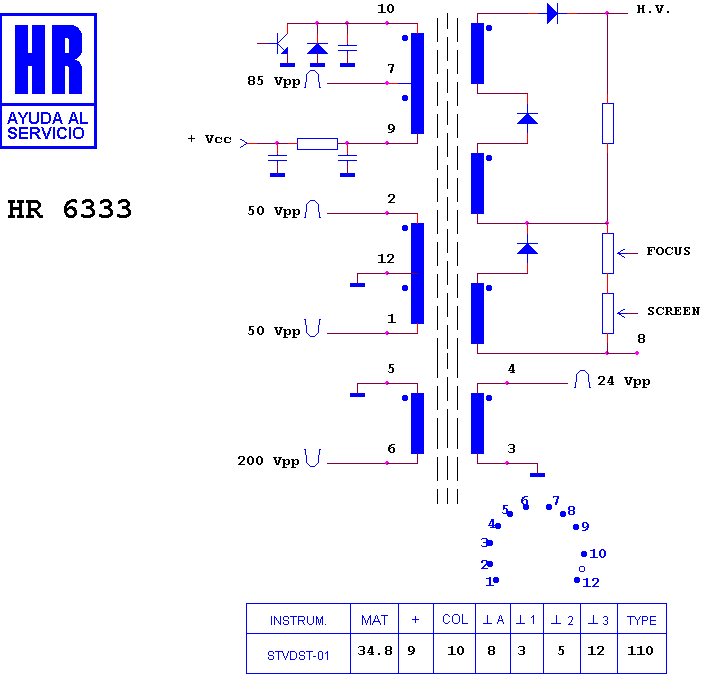

Schematic diagram for HR 6333
schematic

Manufacturer equivalents (2)

75 3543/730733 · 8667210523P102

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6306 · HR 6341 · HR 6331 · HR 6318 · HR 6347 · HR 6325 · HR 6305 · HR 6330 · HR 6340 · HR 6307 · HR 6332 · HR 6342

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

BLAUPUNKT 7 665 220 · BLAUPUNKT 7 665 260 · BLAUPUNKT 7 665 280 · BLAUPUNKT MARBELLA MP 45 · BLAUPUNKT MONZA SQ 25 · BLAUPUNKT MONZA SQ 25 BTX
