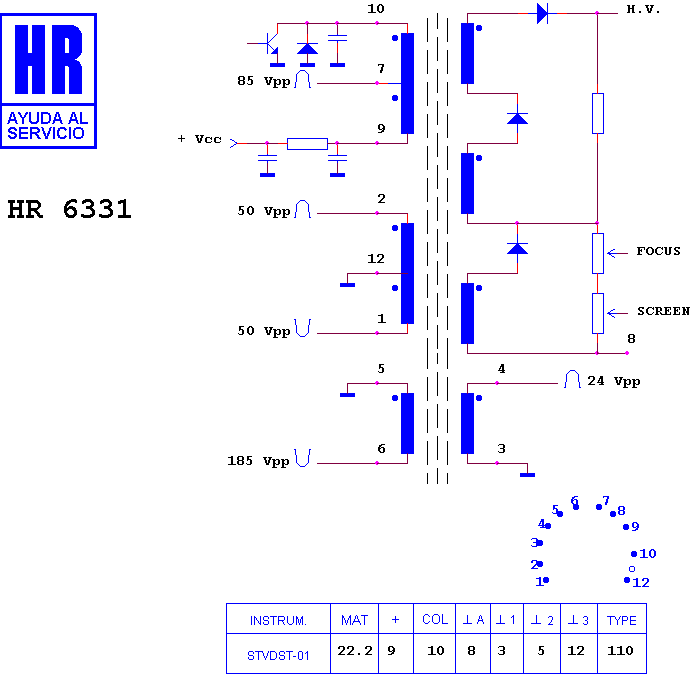

HR 6331

type ST · family 1QP · 22.2 kV maximum anode voltage · 110° deflection · 3 windings · 368 g

Manufacturer equivalents (1)

8 667 210 806 P 102

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6306 · HR 6341 · HR 6305 · HR 6330 · HR 6340 · HR 6307 · HR 6332 · HR 6342 · HR 6333 · HR 6347 · HR 6325 · HR 7394

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Search this part in the full database
