HR 7394

type ST · family 1AP1 · 29.7 kV maximum anode voltage · 110° deflection · 4 windings · 360 g

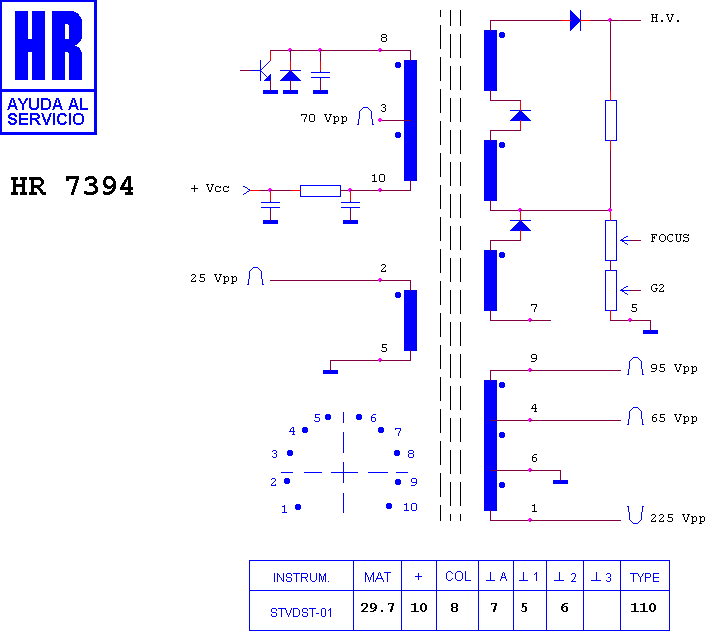

Schematic diagram for HR 7394
schematic

Manufacturer equivalents (17)

003311130 · 003311140 · 0748434 · 103701.80 · 103701.IO · 10370180.P0 · 103701IOP0 · 40330-19 · 63.2096.000 · 748434 · FAT30405 · HR 7394 · KN30405 · M 12-101 · M 12-111 · RO 465 · TR 465

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7385 · HR 7856 · HR 6333 · HR 8292 · HR 6702 · HR 8684 · HR 80052 · HR 7329 · HR 6343 · HR 8031 · HR 8862 · HR 6268

Fitted to (9)

ELBE CHASIS PC 170 · NECKERMANN 765/155 · NECKERMANN 765/55 · NECKERMANN CHASIS PC 170 · NECKERMANN PALLADIUM · PALLADIUM 765/155 · PALLADIUM CHASIS PC 170 · PALLADIUM PALLADIUM · SELECO CHASIS PC 170

Search this part in the full database
