HR 8292

type ST · family 1YP · 37.2 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

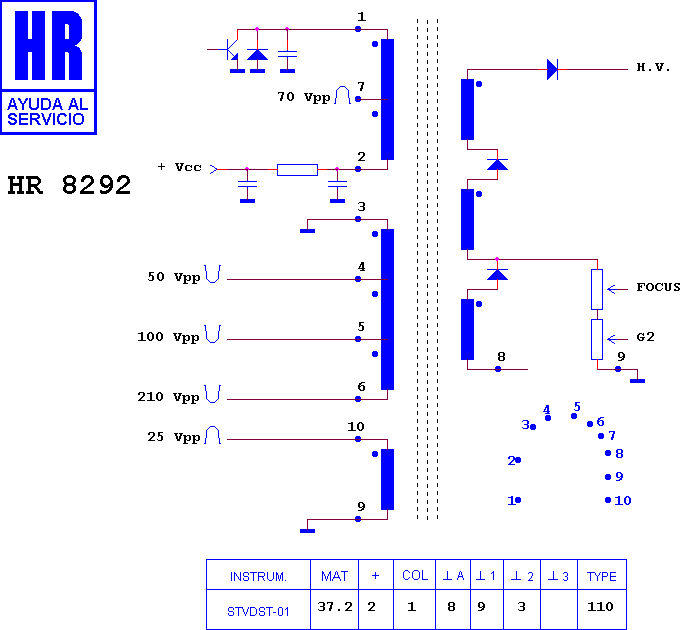

Schematic diagram for HR 8292
schematic

Manufacturer equivalents (3)

140 17052 · 2437202 · 4806 140 17052

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80052 · HR 8892 · HR 8949 · HR 7329 · HR 8127 · HR 7860 · HR 7859 · HR 8031 · HR 8576 · HR 6723 · HR 6702 · HR 8862

Fitted to (2)

PHILIPS 25 GX 1888 · PHILIPS 29 GX 1888
