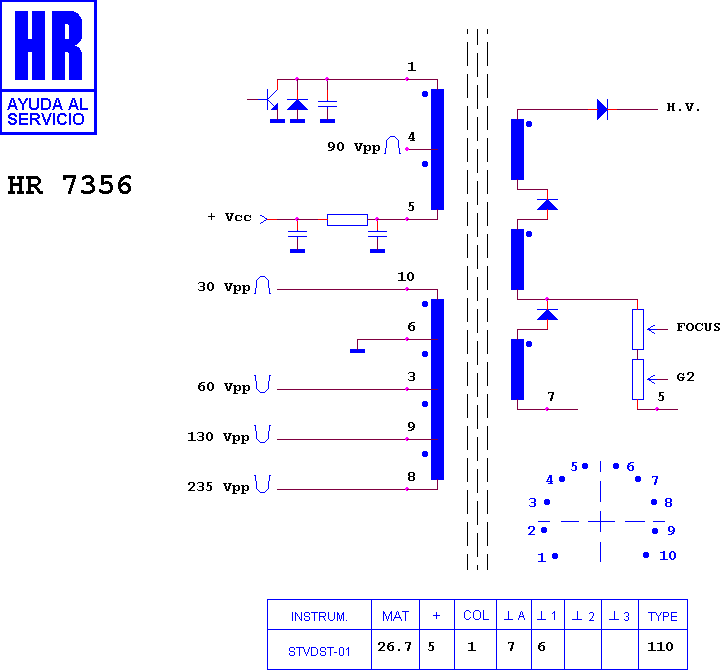

HR 7356

type ST · family 1AP1 · 26.7 kV maximum anode voltage · 110° deflection · 3 windings · 322 g

Manufacturer equivalents (2)

2433953 · 433953

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6283 · HR 8127 · HR 8292 · HR 6268 · HR 8949 · HR 7859 · HR 80074 · HR 7251 · HR 7289 · HR 8151 · HR 8888 · HR 8860

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
