HR 80074

51.1 kV maximum anode voltage · 110° deflection · 3 windings · 474 g

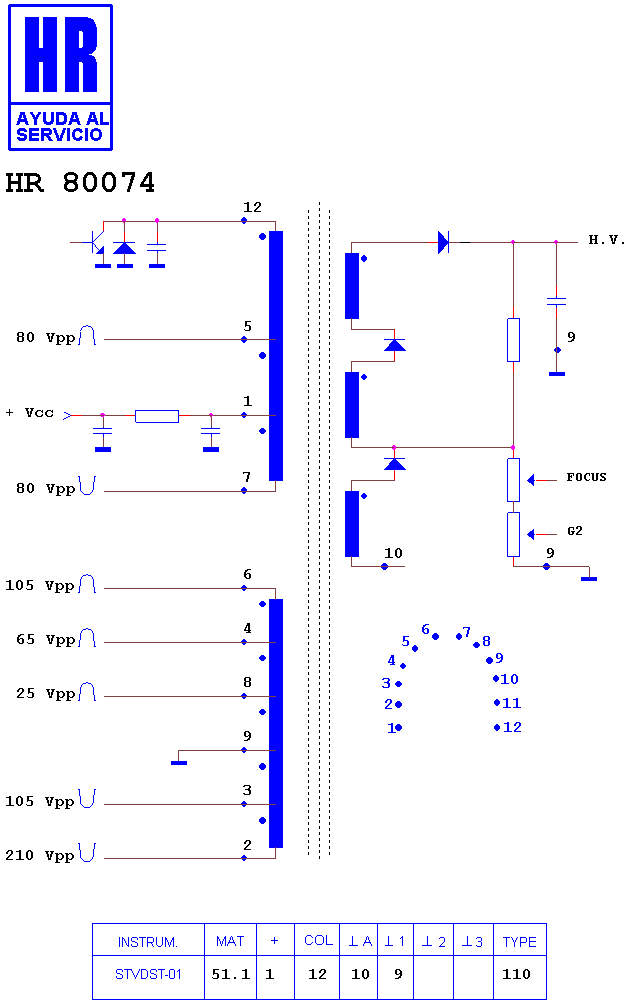

Schematic diagram for HR 80074 — schematic (archived)

Manufacturer equivalents (5)

1372.8812 · 1372.8812A · 276-31623 · 31623 · HR 80074

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8853 · HR 8862 · HR 80125 · HR 6702 · HR 8217 · HR 80057 · HR 8702 · HR 8866 · HR 80040 · HR 6555 · HR 8988 · HR 8867
