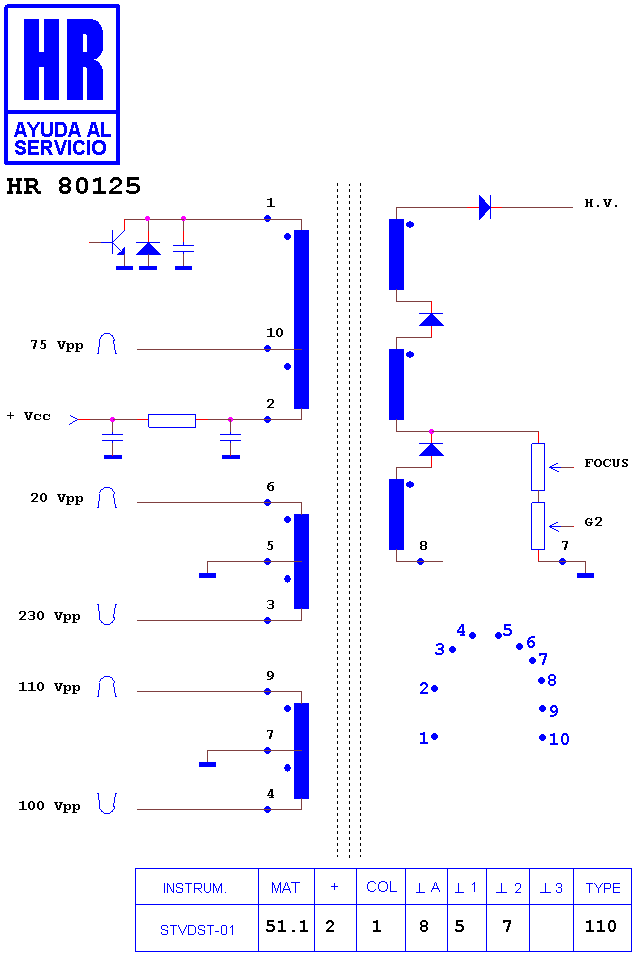

HR 80125

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

Manufacturer equivalents (1)

KFT 4 AA 432 F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8684 · HR 80057 · HR 8801 · HR 8888 · HR 8860 · HR 80126 · HR 46217 · HR 80122 · HR 8193 · HR 80074 · HR 7754 · HR 6662

Fitted to (1)

PANASONIC - MATSUSHITA CHASIS EURO 9 L

Search this part in the full database
