HR 8888

type ST · family 1YP · 47.9 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

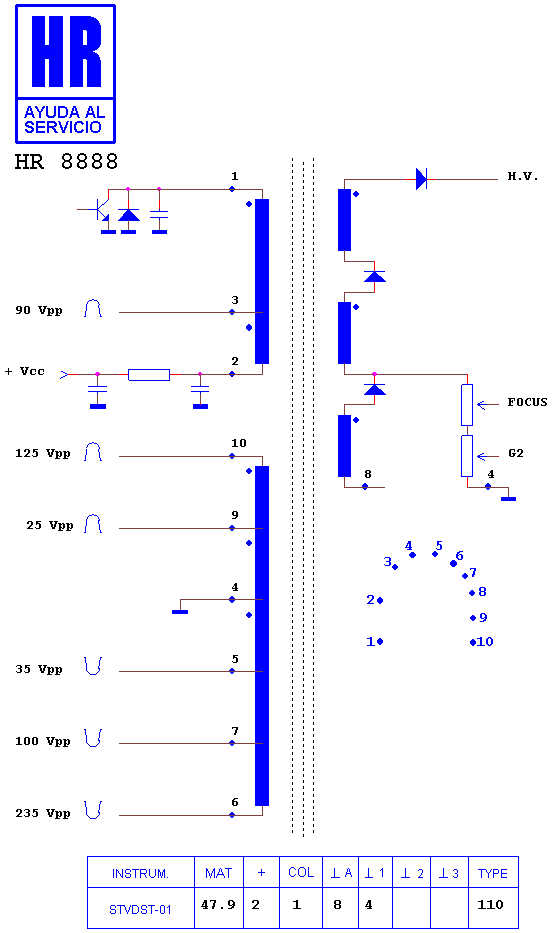

Schematic diagram for HR 8888
schematic (archived)

Manufacturer equivalents (6)

1332.0017 · 1332.0017 A · 13320017B · HR 8888 · TFB 4151 BE · TFB 4151 BH

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8853 · HR 80122 · HR 80125 · HR 80057 · HR 8801 · HR 8193 · HR 46217 · HR 8833 · HR 8326 · HR 8520 · HR 80126 · HR 8380
