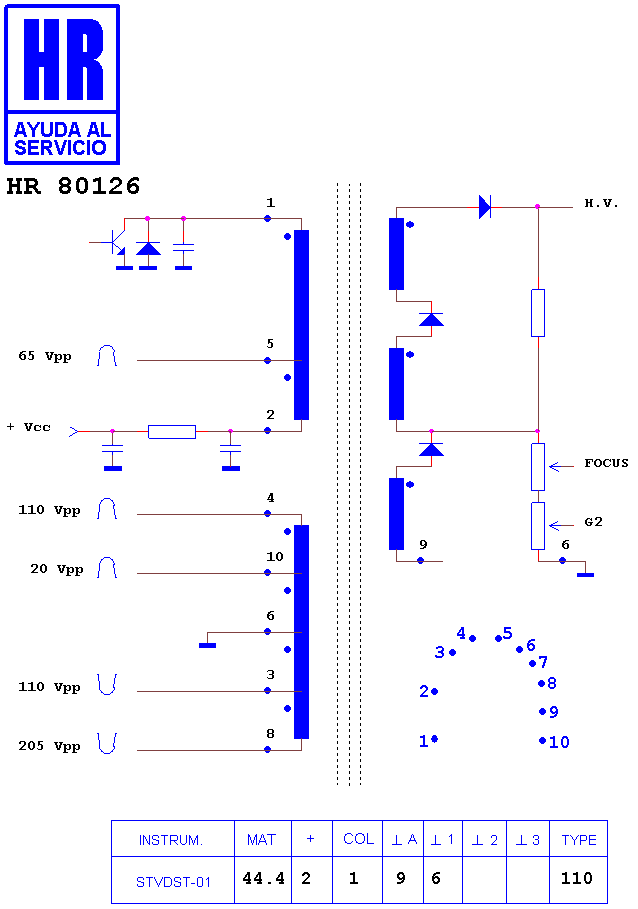

HR 80126

type ST · family 1YP · 44.4 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (3)

6174 V 5003 B · 6174 Z 5003 B · BSC 28 N 2324

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80057 · HR 8801 · HR 80122 · HR 80125 · HR 8888 · HR 8294 · HR 8520 · HR 8596 · HR 8808 · HR 80081 · HR 8921 · HR 8193

Fitted to (10)

LG - GOLDSTAR CHASIS MC 022 A · LG - GOLDSTAR PR 29 CC 25 BRS · LG - GOLDSTAR RE 20 CB 80 RX · LG - GOLDSTAR RE 29 CC 25 · LG - GOLDSTAR RL 28 CB 80 RX · LG - GOLDSTAR RP 27 CA 10 A · LG - GOLDSTAR RP 29 CC 25 · LG - GOLDSTAR RP 29 CC 25 BRS · LG - GOLDSTAR RP CC 25 · NEWTECH RP 29 CC 25
