HR 8801

49.2 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

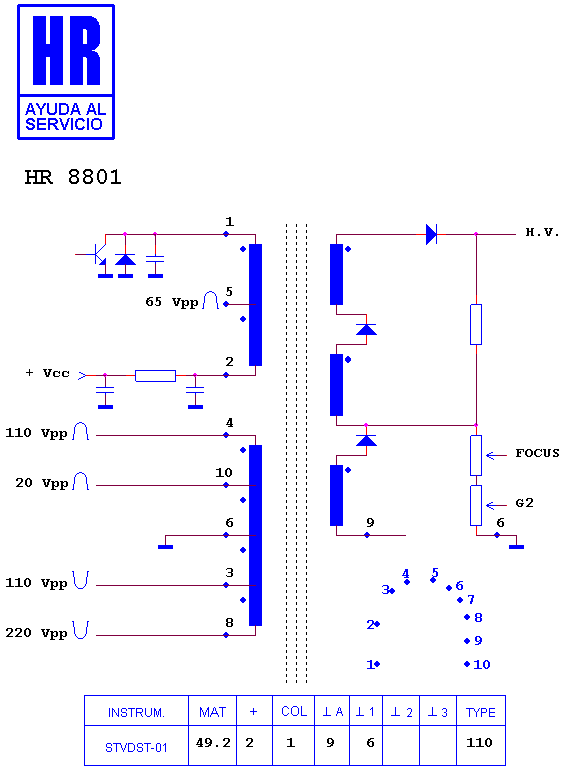

Schematic diagram for HR 8801
schematic (archived)

Manufacturer equivalents (1)

6174Z6012Q

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80125 · HR 80057 · HR 80122 · HR 8520 · HR 80126 · HR 8320 · HR 7497 · HR 80138 · HR 8149 · HR 8966 · HR 8808 · HR 8380

Fitted to (3)

GOLDSTAR - LG CHASIS MC 007 A · GOLDSTAR - LG CT 25 Q 26 ET · GOLDSTAR - LG CT 29 Q 26 ET
