HR 8294

type ST · family 1YP · 47.4 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

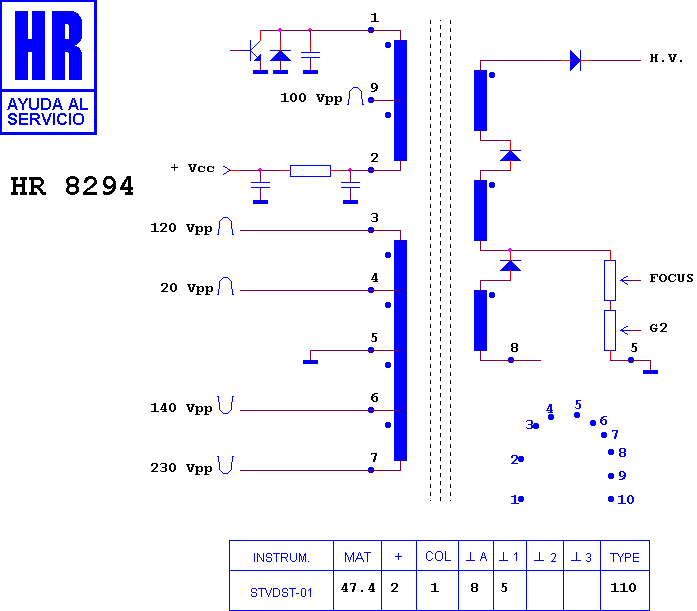

Schematic diagram for HR 8294
schematic

Manufacturer equivalents (2)

TAT 2902 · TAT 2902 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80042 · HR 8503 · HR 80122 · HR 80057 · HR 8433 · HR 8888 · HR 8412 · HR 8418 · HR 8801 · HR 46217 · HR 8860 · HR 8833

Fitted to (3)

CCE HPS 29 B · CCE HPS 29 E · CCE HPS 29 EB
