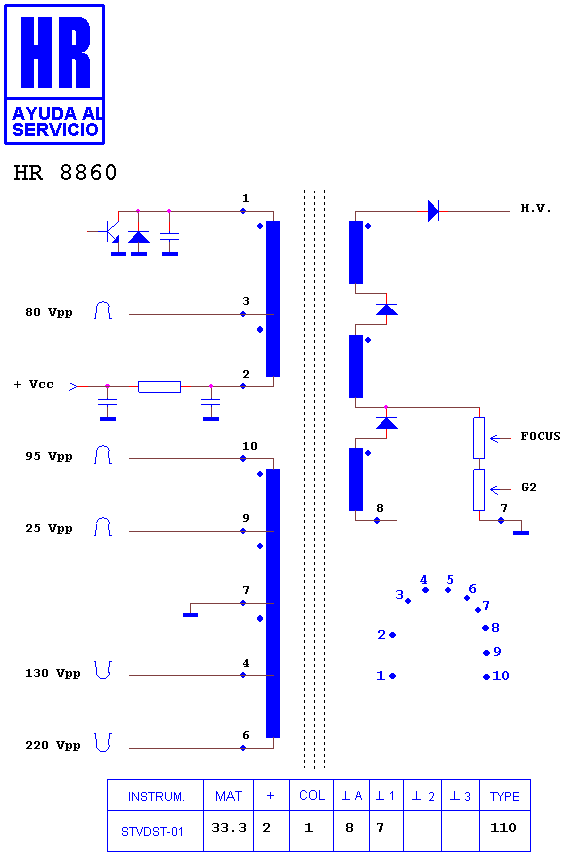

HR 8860

type ST · family 1YP · 33.3 kV maximum anode voltage · 110° deflection · 3 windings · 373 g

Manufacturer equivalents (2)

50 H 0000168 · FFA 94024 L

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8853 · HR 80122 · HR 80057 · HR 8294 · HR 80126 · HR 8220 · HR 8801 · HR 80125 · HR 7476 · HR 46217 · HR 7754 · HR 8838

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (12)

CINERAL TS 2975 · DAEWOO CHASIS CM 865 · DAEWOO DMQ 2595 · DAEWOO DMQ 2975 · DAEWOO DMQ 2975 VM · DAEWOO DTC 29 G 1 TM · DAEWOO DTC 2961 TM · DAEWOO DTC 2975 · DAEWOO DTC 2975 VM · DAEWOO DTH 2070 FS · PHILCO 29 MS 7 · PHILCO CHASIS CM 865
