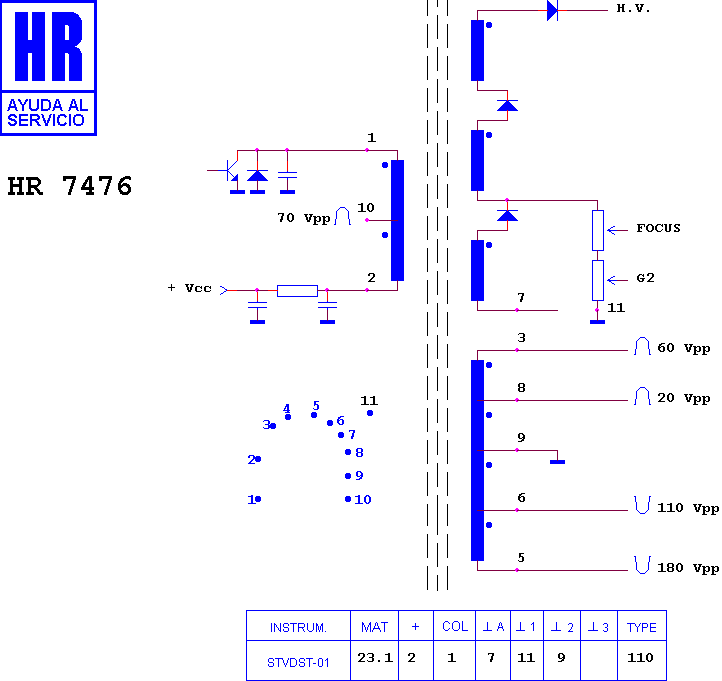

HR 7476

type ST · family 1XP1 · 23.1 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

Manufacturer equivalents (1)

5731001

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8860 · HR 8833 · HR 8509 · HR 8892 · HR 8380 · HR 7329 · HR 80138 · HR 8966 · HR 80126 · HR 8596 · HR 8921 · HR 8220
