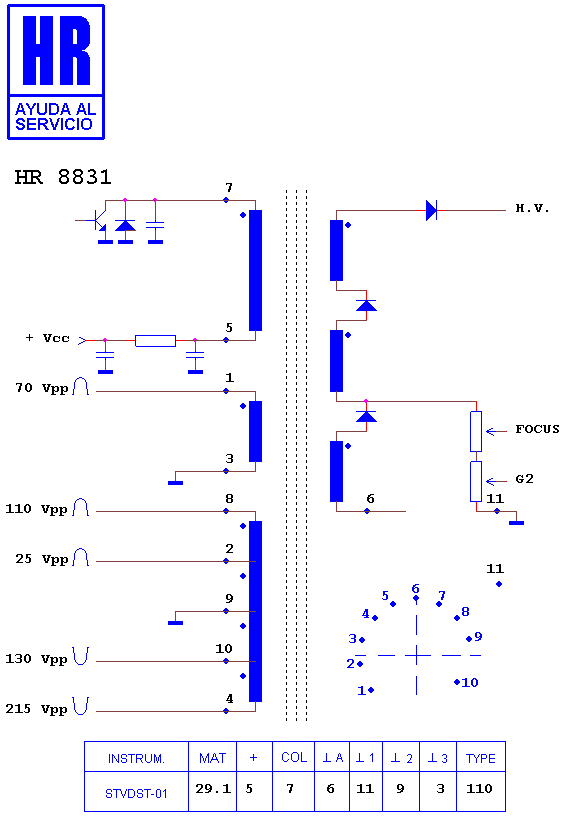

HR 8831

type ST · family 1XP1 · 29.1 kV maximum anode voltage · 110° deflection · 4 windings · 256 g

Manufacturer equivalents (2)

043214014 · 3214014

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7905 · HR 80122 · HR 80057 · HR 80126 · HR 8860 · HR 7697 · HR 8596 · HR 80074 · HR 8132 · HR 80081 · HR 6268 · HR 8016

Fitted to (2)

EMERSON TC 1375 A · EMERSON TC 1485 C
