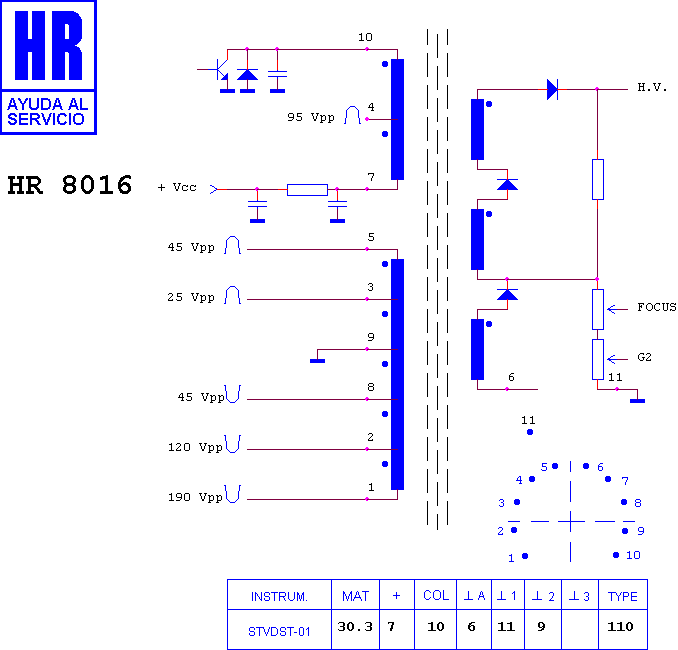

HR 8016

type ST · family 1AP1 · 30.3 kV maximum anode voltage · 110° deflection · 3 windings · 366 g

Manufacturer equivalents (1)

JT 160

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7393 · HR 7232 · HR 80243 · HR 80081 · HR 6585 · HR 8892 · HR 8931 · HR 80130 · HR 80085 · HR 6584 · HR 8814 · HR 80074
