HR 7393

type ST · family 1AP1 · 27.3 kV maximum anode voltage · 110° deflection · 3 windings · 360 g

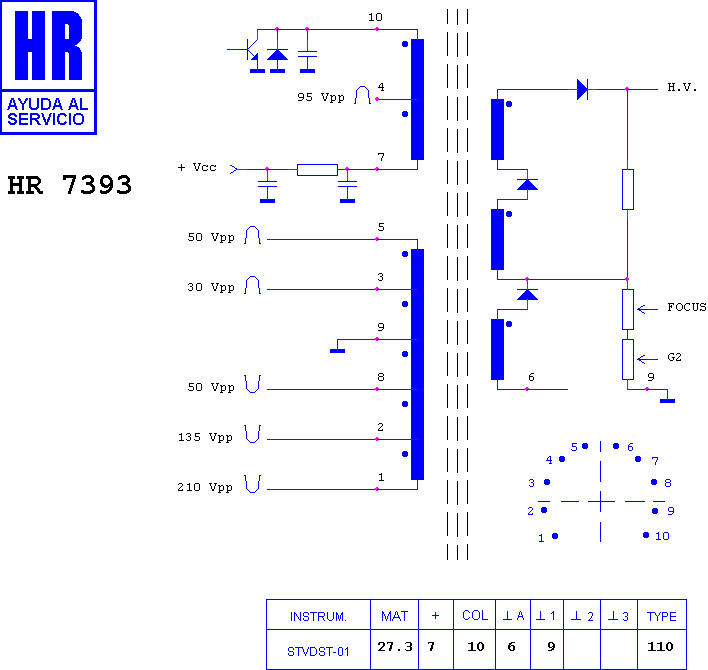

Schematic diagram for HR 7393
schematic

Manufacturer equivalents (2)

22316002 · 4-036-001

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8016 · HR 7232 · HR 7387 · HR 8769 · HR 7429 · HR 8337 · HR 6227 · HR 7087 · HR 7093 · HR 7231 · HR 8552 · HR 6170

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
