HR 7093

type ST · family 1AP2 · 24.9 kV maximum anode voltage · 110° deflection · 2 windings · 320 g

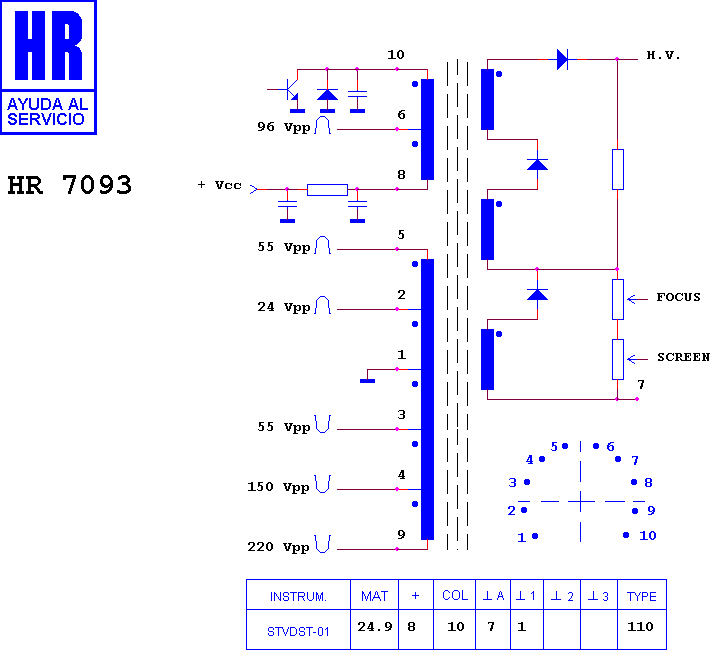

Schematic diagram for HR 7093
schematic

Manufacturer equivalents (2)

1105.0737 · ME/6010-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7087 · HR 7037 · HR 6227 · HR 7387 · HR 6386 · HR 7429 · HR 7393 · HR 8769 · HR 6270 · HR 7232 · HR 80069 · HR 6155

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

CENTURY TVC 22" 26" 27"
