HR 7232

type ST · family 1ACP · 27 kV maximum anode voltage · 110° deflection · 4 windings · 412 g

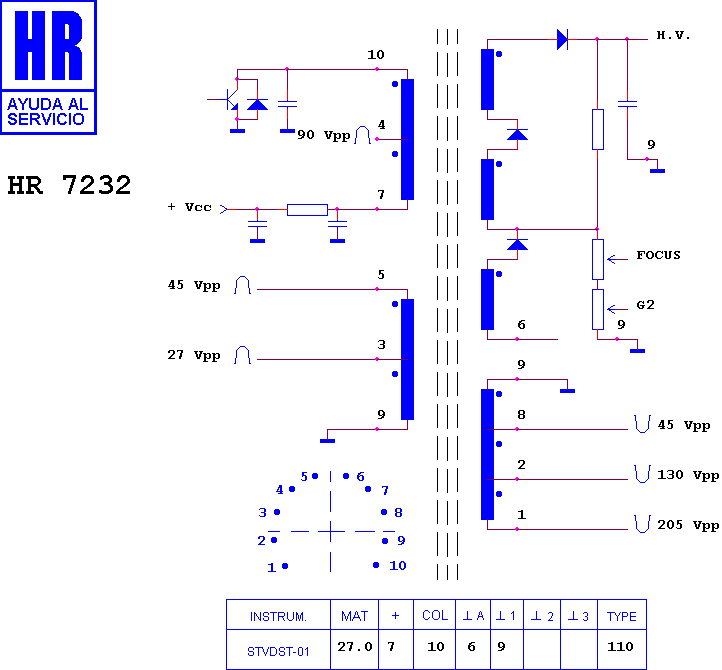

Schematic diagram for HR 7232
schematic

Manufacturer equivalents (12)

18256001 · 21096005 · 28386005 · 28386017 · 31076003 · 4-002-002 · 4-008-001 · 4-008-002 · 4-017-002 · 4-018-002 · FAT 30760 · KN 35271 N

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8016 · HR 7393 · HR 7053 · HR 7387 · HR 7231 · HR 7429 · HR 7087 · HR 7093 · HR 6227 · HR 8769 · HR 6159 · HR 8552

Fitted to (1)

INTERVIDEO VIDEO GAME V 3351
