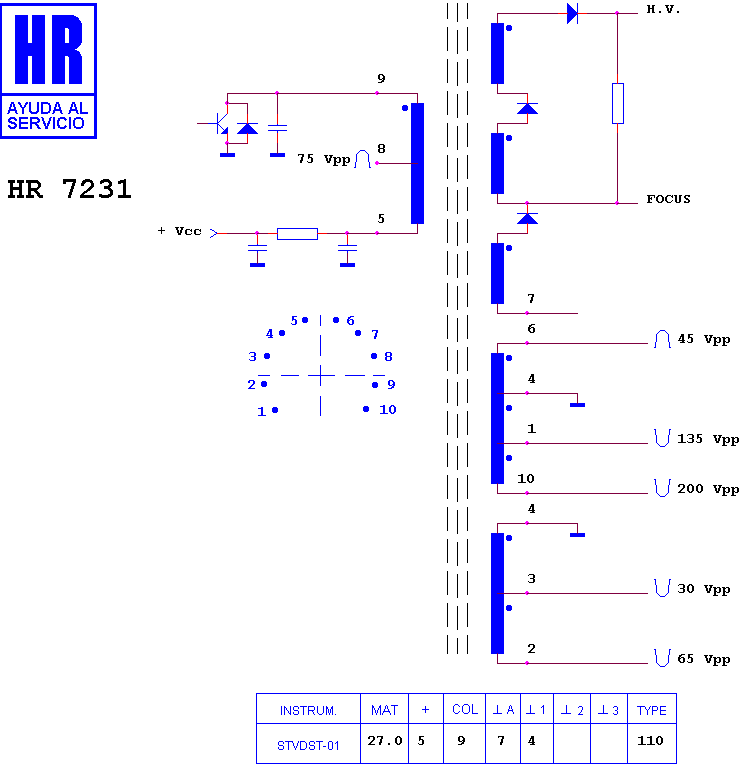

HR 7231

type ST · family 1AS1 · 27 kV maximum anode voltage · 110° deflection · 3 windings · 350 g

Manufacturer equivalents (8)

003310110 · FAT 30136 · HR 7231 · KN 30136 · M 10-03 · ME/6477-00 · RO 310 · TR 310

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6730 · HR 6721 · HR 7232 · HR 7037 · HR 8028 · HR 8769 · HR 8800 · HR 6725 · HR 7393 · HR 80069 · HR 7954 · HR 7053

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
