HR 8028

type ST · family 1VP · 23.4 kV maximum anode voltage · 110° deflection · 4 windings · 408 g

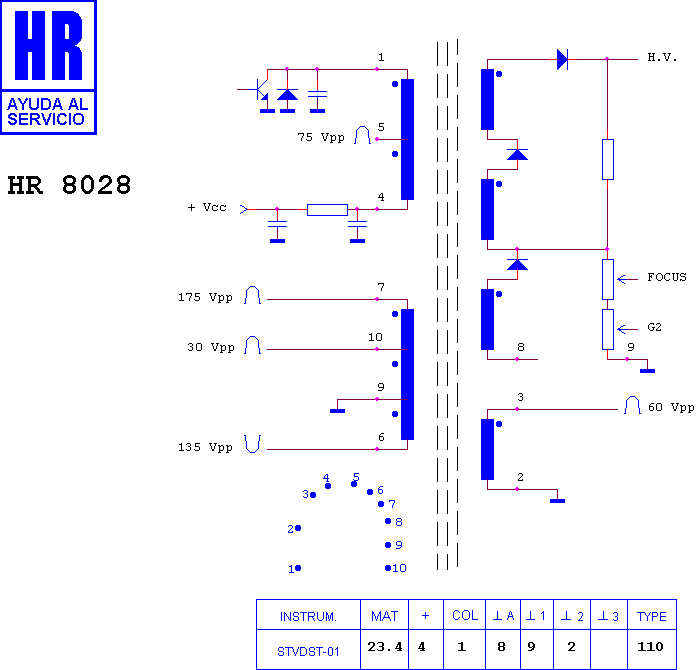

Schematic diagram for HR 8028
schematic

Manufacturer equivalents (8)

1352.0001 · 1352.0001A · 1352.0001B · 258 30052 · 3111 258 30050 · 3111 258 30051 · 3111 258 30052 · FAT30483

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6717 · HR 6730 · HR 7818 · HR 80080 · HR 8086 · HR 8872 · HR 8166 · HR 6584 · HR 7084 · HR 8405 · HR 7231 · HR 6555

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

PHILIPS 28 PT 4521/39 · PHILIPS CHASIS MD 1.1 E · PHILIPS CHASIS MID 1 · RADIOLA 70 TA 4412
