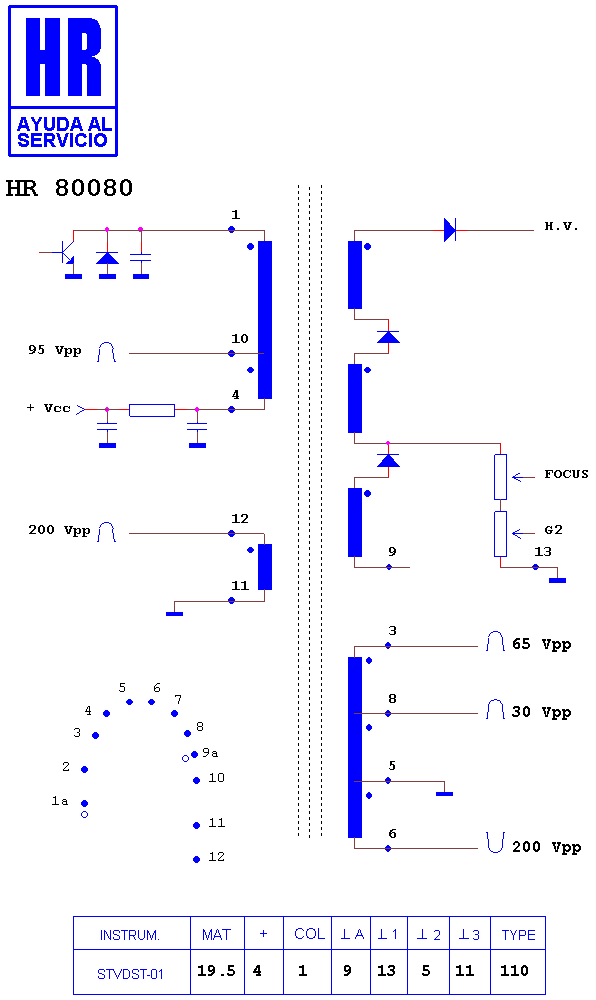

HR 80080

type ST · family 1CAP · 19.5 kV maximum anode voltage · 110° deflection · 4 windings · 300 g

Manufacturer equivalents (2)

F 5010 PA · RTRNF5010PAZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8028 · HR 6371 · HR 6564 · HR 7676 · HR 6242 · HR 6488 · HR 7068 · HR 8619 · HR 6182 · HR 7700 · HR 6603 · HR 7346

Fitted to (2)

FURUNO C-H 24 · FURUNO MONITOR
