HR 7700

type ST · family 1VP · 29.4 kV maximum anode voltage · 110° deflection · 3 windings · 375 g

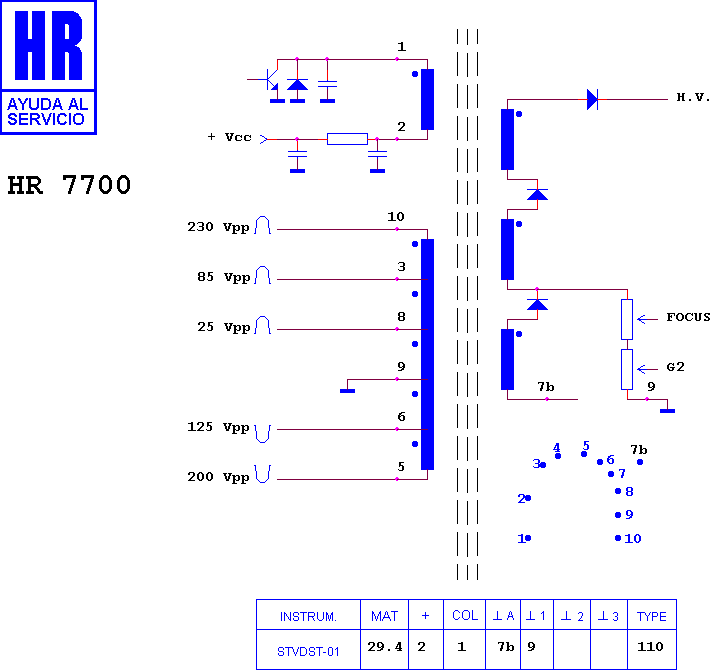

Schematic diagram for HR 7700
schematic

Manufacturer equivalents (3)

2434654 · 2434654 H · 434654

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80059 · HR 80042 · HR 7955 · HR 7982 · HR 80122 · HR 80051 · HR 80108 · HR 80142 · HR 8833 · HR 80057 · HR 7949 · HR 8473

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
