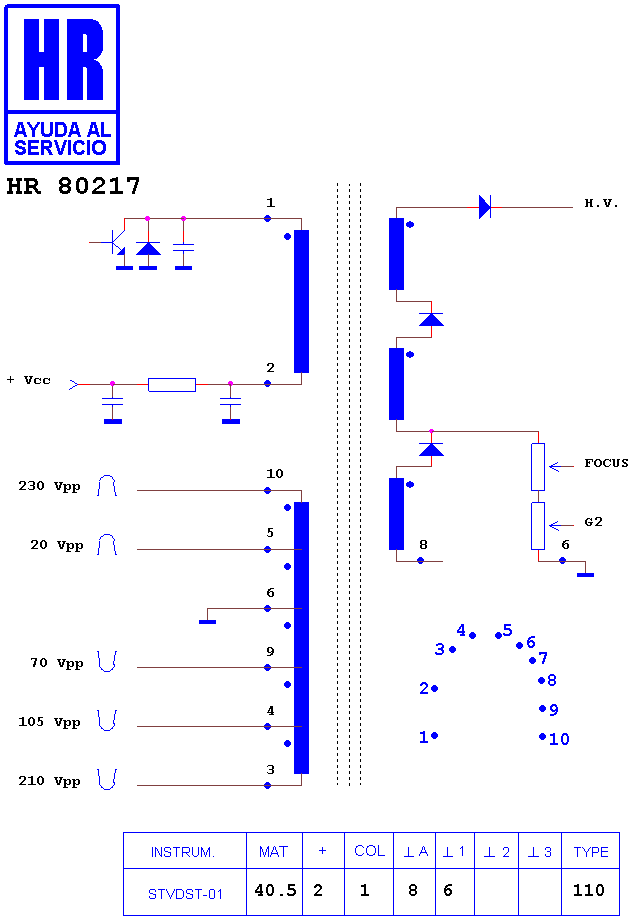

HR 80217

type ST · family 1YP · 40.5 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (1)

KFT 6 AB 056 F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80130 · HR 80108 · HR 8506 · HR 80051 · HR 7700 · HR 7497 · HR 6620 · HR 6242 · HR 6163 · HR 7070 · HR 7014 · HR 8157

Fitted to (2)

PANASONIC - MATSUSHITA CT 35 G 25 B · PANASONIC - MATSUSHITA CT 36 G 33
