HR 8506

type ST · family 1VP · 41 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

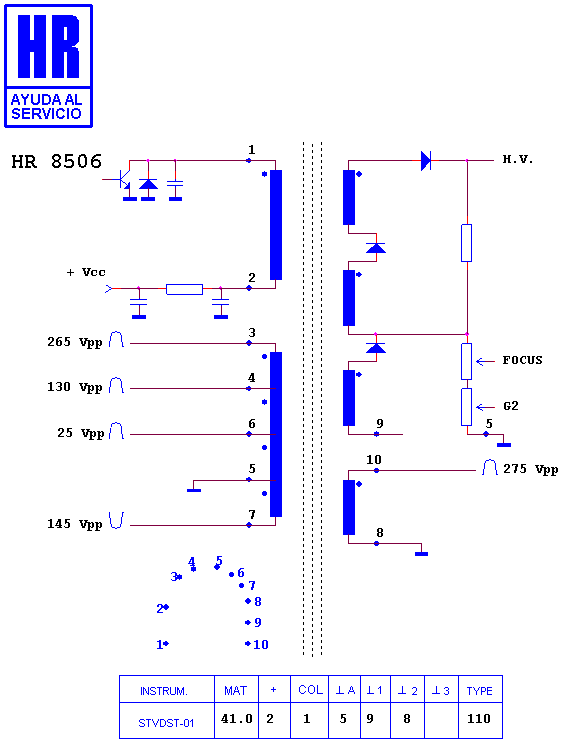

Schematic diagram for HR 8506
schematic

Manufacturer equivalents (3)

32859 154 140 · FCR 29 A 001 · FCR29A001R

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80042 · HR 80142 · HR 80059 · HR 7987 · HR 8294 · HR 8473 · HR 7982 · HR 80063 · HR 7955 · HR 8732 · HR 80098 · HR 8893

Fitted to (9)

JC PENNEY 2509 · JC PENNEY 682 2509 · PENNY 682-2509 · SAMSUNG 6282 · SAMSUNG CB 6818 Z · SAMSUNG MONITOR · SAMSUNG TC 2750 S · SAMSUNG TC 2750 SX · SAMSUNG TC 27505 X

Search this part in the full database
