HR 80024

35.1 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

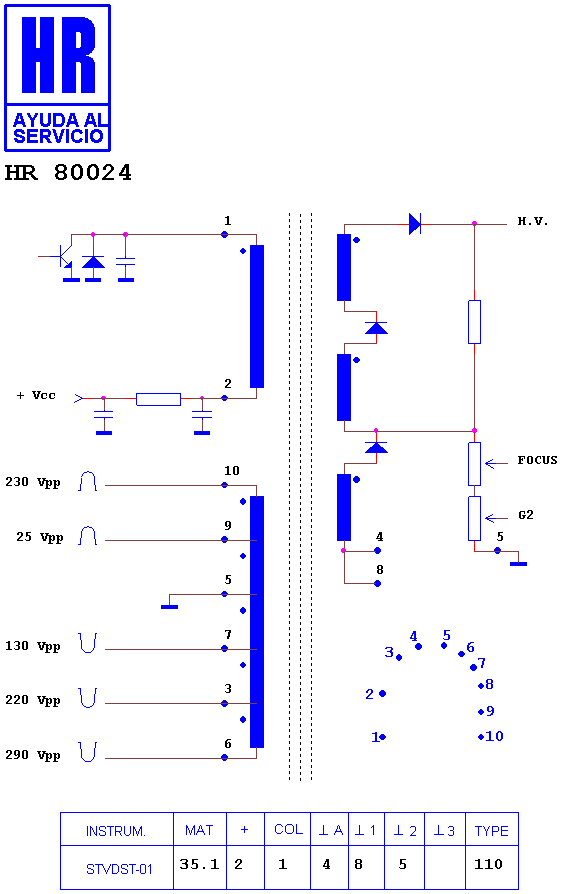

Schematic diagram for HR 80024
schematic (archived)

Manufacturer equivalents (11)

003313160 · 057.834EL4 · 1352.5068 · 1352.5068A · 1352.5068B · 1352.5068R · 75955.105.84 · 75955.105.8400 · HR 80024 · RO662 · TR662

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8473 · HR 80068 · HR 8506 · HR 8336 · HR 8732 · HR 8960 · HR 8519 · HR 80098 · HR 7076 · HR 5717 · HR 7392 · HR 8775

Fitted to (2)

BEKO - BEKOTEKNIK CHASIS 14.2 110 · FIRST LINE RFL 70 ES
