HR 80068

36.3 kV maximum anode voltage · 110° deflection · 3 windings · 403 g

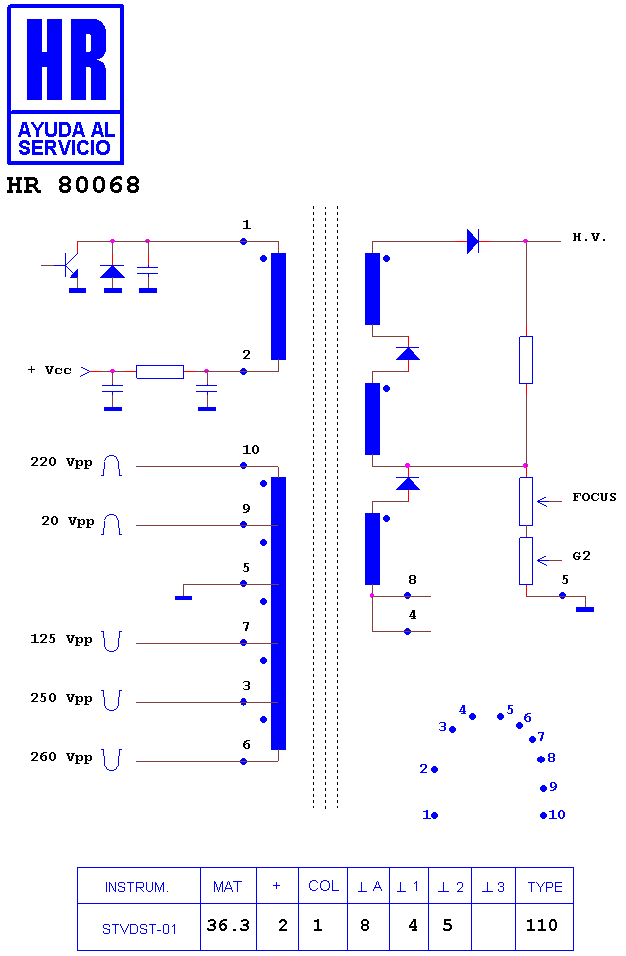

Schematic diagram for HR 80068
schematic (archived)

Manufacturer equivalents (6)

040.028EL1 · 1352.5080 · 1352.5080B · 75955.109.58 · 75955.109.5800 · HR 80068

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7987 · HR 8714 · HR 8506 · HR 8960 · HR 8732 · HR 8336 · HR 8519 · HR 80024 · HR 5717 · HR 7076 · HR 8827 · HR 8700

Fitted to (12)

BEKO - BEKOTEKNIK 28 WF 10 · BEKO - BEKOTEKNIK NR · BEKO - BEKOTEKNIK NR 28 WF 10 · DAEWOO F 28 G 6 ST · GRUNDIG 70-2401 IT DOLB · GRUNDIG 70-2401/5 · GRUNDIG ARCANCE 70 FLAT MFW · GRUNDIG MFW 70-2401 IT DOLBY · GRUNDIG MFW 70-2401/5 · GRUNDIG SUPER COLOR MFW · MATSUI 28 WF 10 · MATSUI NR 28 WF 10

Search this part in the full database
